MCR-SL-D-FIT

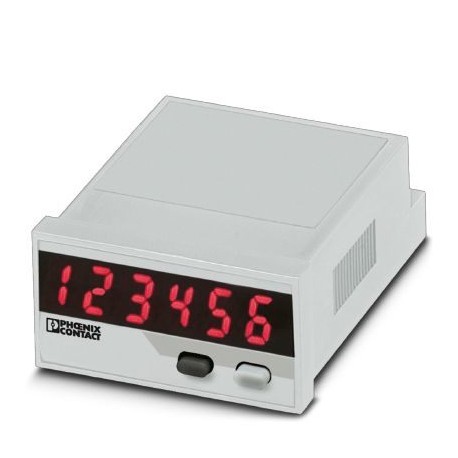

MCR-SL-D-FIT 2864024 PHOENIX CONTACT Digital display
$0.00USD
3864 in stock
Key Specifications
GTIN:4017918976477
Orderkey:2864024
(General):EN 61000-4-2
Catalog page:Page 185 (C-5-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918976477 |
| Orderkey | 2864024 |
| (General) | EN 61000-4-2 |
| Catalog page | Page 185 (C-5-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Color (Power supply) | gray |
| Custom tariff number | 90291000 |
| Conformance (General) | CE-compliant |
| Noise emission (General) | EN 55011 / class B |
| Noise immunity (General) | EN 61000-6-2 |
| Output name (Input data) | 1 NPN optocoupler |
| UL, USA/Canada (General) | UL 863 |
| Conformance (Power supply) | CE-compliant |
| Depth (Key Commercial Data) | 68 mm |
| Width (Key Commercial Data) | 48 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 24 mm |
| Noise emission (Power supply) | EN 55011 / class B |
| Noise immunity (Power supply) | EN 61000-6-2 |
| UL, USA/Canada (Power supply) | UL 863 |
| Housing material (Power supply) | Macrolon 2405 |
| Degree of protection (Dimensions) | IP65 from the front |
| Max. switching current (Input data) | 10 mA |
| Weight per Piece (excluding packing) | 92.600 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Maximum switching voltage (Input data) | 30 V DC |
| Supply voltage range (Switching output) | 10 V DC ... 30 V DC |
| Connection in acc. with standard (General) | CUL |
| Max. current consumption (Switching output) | max. 40 mA |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) (Dimensions) | -25 °C ... 70 °C |
| Input resistance of voltage input (Ambient conditions) | 10 kΩ |
Product Description
MCR digital display, for measuring and displaying frequencies, pulses and times, 6-digit display
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
