MCR-FL-D-U-I-2SP- 24

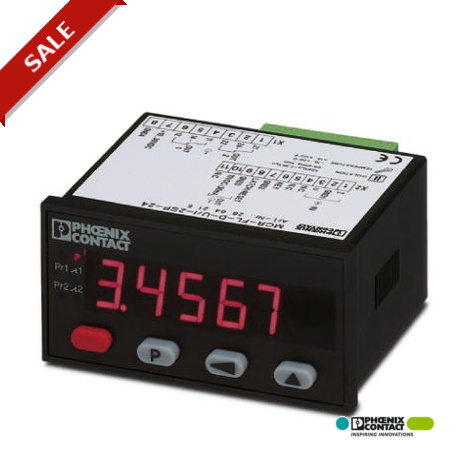

MCR-FL-D-U-I-2SP- 24 2864215 PHOENIX CONTACT MCR digital display, for measurement and display of standard si..
$0.00USD
4902 in stock
Key Specifications
:-10 V ... 10 V
Color:black
Depth:93.1 mm
Width:96 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| -10 V ... 10 V | |
| Color | black |
| Depth | 93.1 mm |
| Width | 96 mm |
| Height | 48 mm |
| Conformance | CE-compliant |
| Output name | 2 x relay output + digital display |
| Contact type | 2 PDT |
| Contact material | AgCdO |
| Housing material | Macrolon 2405 |
| UL, USA / Canada | UL 508 Recognized |
| Power consumption | max. 2 W |
| Max. input current | 50 mA |
| Max. input voltage | ± 30 V |
| Current input signal | 0 mA ... 20 mA |
| Degree of protection | IP65 from the front |
| Supply voltage range | 10 V DC ... 30 V DC |
| Voltage input signal | 0 V ... 10 V |
| Max. switching current | 3 A |
| Min. switching current | 30 mA DC |
| Maximum switching voltage | 300 V DC |
| Input resistance current input | < 50 Ω |
| Ambient temperature (operation) | -20 °C ... 65 °C |
| Input resistance of voltage input | > 1 MΩ |
| Test voltage, input/output/supply | 500 Vrms/ 2.3 kVrms, 50/60 Hz, 1 min. |
| Interrupting rating (ohmic load) max. | 50 W |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
