MCD20108R5

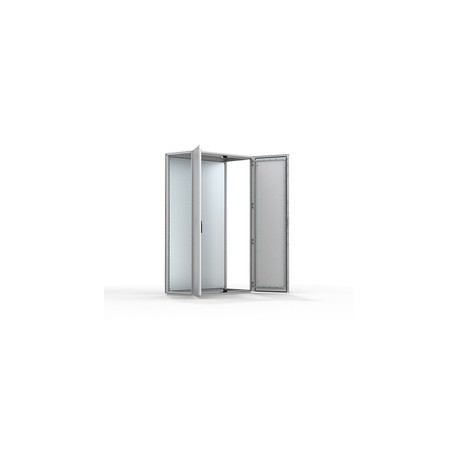

MCD20108R5 ELDON Floor standing, 2000x1000x800
$0.00USD
3881 in stock
Key Specifications
EAN:8713574130258
UPC:783510491628
Color:Light Gray
Finish:Powder Coated
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 8713574130258 |
| UPC | 783510491628 |
| Color | Light Gray |
| Finish | Powder Coated |
| Weight | 187.7 kg |
| Material | Mild Steel |
| Color Code | RAL 7035 |
| Panel Size | 832x710 mm |
| Feature Name | Feature Value |
| Body Thickness | 1.5 mm |
| Door Thickness | 2 mm |
| Door/Rear Panel | Rear panel |
| Depth (EF000049) | 800.00 mm |
| Packing Quantity | 1.0000 |
| Width (EF000008) | 1000.00 mm |
| Colour (EF000007) | Grey |
| Height (EF000040) | 2000.00 mm |
| Max Mounting Depth | 759 mm |
| Material (EF002169) | Steel |
| Couplable (EF001229) | |
| Mounting Plate Width | 894 mm |
| Atributo del producto | Valor |
| Mounting Plate Height | 1894 mm |
| RAL-number (EF000116) | 7035.00 |
| EMC-version (EF001062) | false |
| Corner model (EF020814) | |
| Freestanding (EF020363) | |
| Mounting Plate Included | Yes |
| Pitched roof (EF009278) | false |
| Pole fastening (EF009582) | false |
| With rear door (EF007381) | false |
| Impact strength (EF004293) | IK10 |
| Number of doors (EF000122) | 2.00 |
| Number of locks (EF000123) | 1.00 |
| Material quality (EF001257) | Other |
| Standard Packaging Quantity | 1.0000 |
| With glazed door (EF001089) | false |
| Surface finishing (EF006569) | Powder coating |
| With mounting plate (EF000118) | true |
| Intermediate mounting (EF022994) | |
| With ventilation door (EF006279) | false |
| Degree of protection (IP) (EF005474) | IP55 |
| Floor standing wall model (EF015208) | |
| Suitable for wall built-in (EF007536) | false |
| Suitable for wall mounting (EF000664) | |
| Degree of protection (NEMA) (EF011959) | 13 |
| Suitable for metrical mounting (EF005823) | false |
| Mounting plate depth-adjustable (EF006054) | true |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | None N |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | None N |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | None W |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | None N |
Product Description
Self-supporting, 2000x1000x800, combinable, 2-door, with MP, mild steel, IP55
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
