In Stock Hot Product
MC2A310AT1

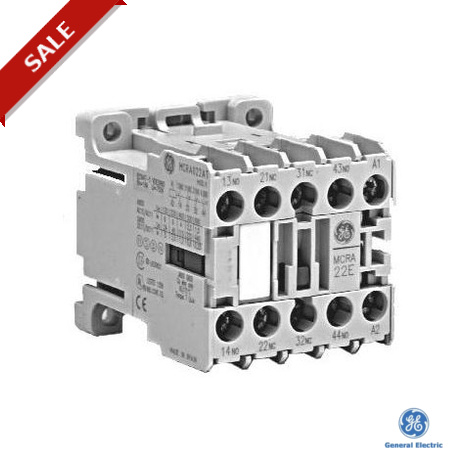

MC2A310AT1 103577 GENERAL ELECTRIC Screw terminal 3P, AC3 5.5kW, 24V/50-60Hz AC Bifreq. Coil, 1NO (GE)
$0.00USD
4285 in stock
Key Specifications
Series:Three-pole contactors 6, 9 and 12 A (AC3)
Terminal:Screw terminal
Aux Contacts:1NO
Package (pcs):20
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Three-pole contactors 6, 9 and 12 A (AC3) |
| Terminal | Screw terminal |
| Aux Contacts | 1NO |
| Package (pcs) | 20 |
| Control circuit | AC |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive load AC1 | 20 A |
| Weight (SPECIFICATIONS) | 0.17 kg |
| Frequency Control Voltage: AC | 50 Hz / 60 Hz |
| Admissible Power AC3 1-Phase 115V | 0.75 kW |
| Admissible Power AC3 3-Phase 500V | 5.5 kW |
| Admissible Power AC3 1-Phase 220V, 230V | 2 kW |
| Admissible Power AC3 3-Phase 220V, 230V | 3 kW |
| Admissible Power AC3 3-Phase 380V, 400V | 5.5 kW |
| Control Voltage: AC Bifreq. Coil (at 50-60 Hz) | 24 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
