In Stock Hot Product
MC0A400AT3

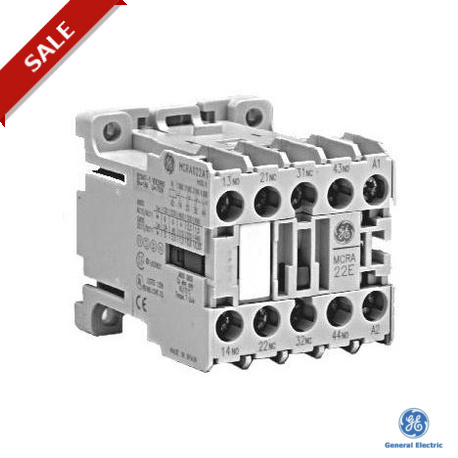

MC0A400AT3 102799 GENERAL ELECTRIC Screw terminal 4P, AC1 13kW, 110-115V/50-60Hz AC Bifreq. Coil, 4NO (GE)
$0.00USD
4209 in stock
Key Specifications
Series:Four-pole contactors 20A (AC1)
Terminal:Screw terminal
Aux Contacts:4NO
Package (pcs):20
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Series | Four-pole contactors 20A (AC1) |
| Terminal | Screw terminal |
| Aux Contacts | 4NO |
| Package (pcs) | 20 |
| Control circuit | AC |
| ETIM 5.0 (DIMENSIONS) | EC000066 |
| ETIM 6.0 (DIMENSIONS) | EC000066 |
| Non-inductive load AC1 | 20 A |
| Weight (SPECIFICATIONS) | 0.17 kg |
| Admissible Power AC1 1-Phase 115V | 2.3 kW |
| Admissible Power AC1 3-Phase 500V | 17 kW |
| Admissible Power AC1 1-Phase 220V, 230V | 4.4 kW |
| Admissible Power AC1 3-Phase 220V, 230V | 7.5 kW |
| Admissible Power AC1 3-Phase 380V, 400V | 13 kW |
| Control Voltage: AC Bifreq. Coil (at 50-60 Hz) | 110-115 V |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
