MC-35-MULTI-65-PVO-BK

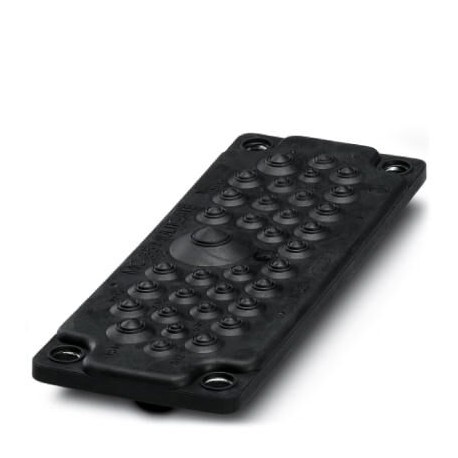

MC-35-MULTI-65-PVO-BK 1422351 PHOENIX CONTACT Cable feed-through plates MC-35-MULTI-65-PVO-BK 1422351
$0.00USD
3613 in stock
Key Specifications
GTIN:4055626301860
Orderkey:1422351
Catalog page:Page 690 (C-2-2017)
Packing unit:1
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626301860 |
| Orderkey | 1422351 |
| Catalog page | Page 690 (C-2-2017) |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC001004 |
| ETIM 7.0 (eCl@ss) | EC001004 |
| Custom tariff number | 39269097 |
| (Ambient conditions) | The mounting screws included should be used for assembly.Assembly steps:1) Fix Multigates with the mounting screws provided (observe torque)2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
| (Key Commercial Data) | 1x 17 mm ... 32 mm |
| Note (Ambient conditions) | incl. mounting screws |
| Color (Ambient conditions) | black |
| Torque (Ambient conditions) | 1.5 Nm ... 2 Nm (Mounting screws) |
| Width (Key Commercial Data) | 92 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 17.6 mm |
| Length (Key Commercial Data) | 222 mm |
| eCl@ss 6.0 (Classifications) | 27409200 |
| eCl@ss 7.0 (Classifications) | 27409208 |
| eCl@ss 8.0 (Classifications) | 27409208 |
| eCl@ss 9.0 (Classifications) | 27400569 |
| Material (Ambient conditions) | TPE-SEBS |
| Degree of protection (Dimensions) | IP65 (Minimum sheet thickness >= 2.5 mm) |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| No. of conductors (Ambient conditions) | 35 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 100 °C |
| External cable diameter (Key Commercial Data) | 2x 6 mm ... 10 mm |
| Installation instructions (Ambient conditions) | M8 mounting screw, torque: 1.5 - 2.0 Nm, SW5 Allen key |
| Flammability rating according to UL 94 (General) | V0 |
| Drill hole distance, vertical (Key Commercial Data) | 193 mm |
| Drill hole distance, horizontal (Key Commercial Data) | 62 mm |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
Product Description
Plates for cable passage, number of conductors: 35, outer diameter of the cable: 2x 6 mm ... 10 mm, 14x 7 mm... 12mm, 16x 10mm... 14mm, 2x 12mm... 18mm, 1x 17mm... 32 mm, material: galvanized steel sh
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Cable feed-through plates, no. of conductors: 35, length: 222 mm, width: 92 mm, height: 17.6 mm, external cable diameter: 2x 6 mm ... 10 mm , color: black
