MC 1,5/10-GF-3,81 P14 THRR72

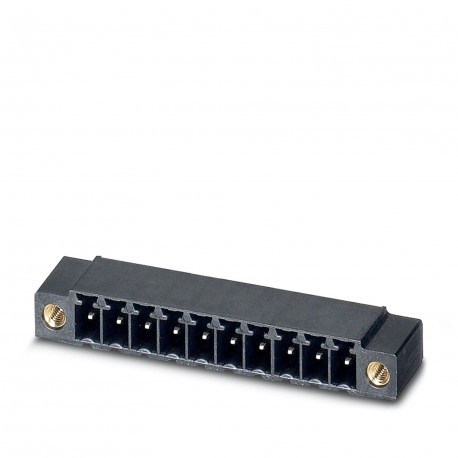

MC 1,5/10-GF-3,81 P14 THRR72 1782213 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4224 in stock
Key Specifications
Type:Component suitable for through hole reflow
Color:black
Pitch:3.81 mm
Width:48.49 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Component suitable for through hole reflow |
| Color | black |
| Pitch | 3.81 mm |
| Width | 48.49 mm |
| Height | 8.3 mm |
| Length | 9.2 mm |
| Process | Reflow/wave soldering |
| Pin layout | Linear pinning |
| Product type | PCB headers |
| Hole diameter | 1.4 mm |
| Mounting type | THR soldering |
| Product family | MC 1,5/..-GF-THR |
| [W] tape width | 72 mm |
| Contact surface | Tin Sn |
| Mounting flange | Threaded flange |
| Article revision | 01 |
| Installed height | 6.9 mm |
| Type of packaging | 72 mm wide tape |
| [A] coil diameter | 330 mm |
| Dimensional drawing | |
| Insulating material | LCP |
| Number of positions | 10 |
| Outer packaging type | Transparent-Bag |
| Rated voltage (II/2) | 250 V |
| Rated voltage (III/2) | 160 V |
| Contact surface material | Sn |
| Length of the solder pin | 1.4 mm |
| Moisture Sensitive Level | MSL 1 |
| Insulating material group | IIIa |
| Rated surge voltage (II/2) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (III/3) | 2.5 kV |
| Solder cycles in the reflow | 3 |
| [W2] coil overall dimension | 78.4 mm |
| Classification temperature Tc | 260 °C |
| Flammability rating according to UL 94 | V0 |
Product Description
PCB headers, number of positions: 10, product range: MC 1,5/..-GF-THR, pitch: 3.81 mm, pin layout: Linear pinning, solder pin [P]: 1.4 mm, type of packaging: 72 mm wide tape
