MC 1,5/10-GF-3,5 P14 THRR72

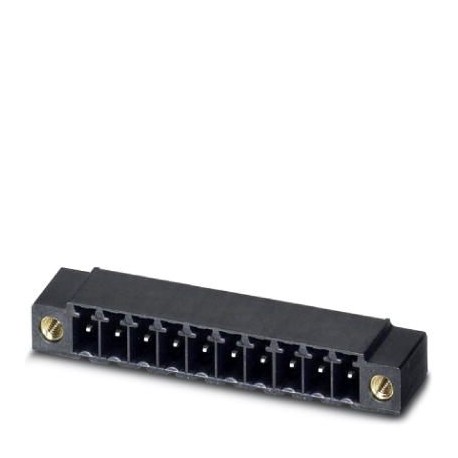

MC 1,5/10-GF-3,5 P14 THRR72 1789779 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4478 in stock
Key Specifications
GTIN:4046356612388
Note:Made to Order (non-returnable)
Orderkey:1789779
(General):CUL
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356612388 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1789779 |
| (General) | CUL |
| Catalog page | Page 209 (C-1-2013) |
| Packing unit | 380 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | black |
| Custom tariff number | 85366930 |
| Minimum order quantity | 380 pc |
| Pitch (Key Commercial Data) | 3.5 mm |
| Width (Key Commercial Data) | 45.3 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 6.9 mm |
| Length (Key Commercial Data) | 9.2 mm |
| Range of articles (Dimensions) | MC 1,5/..-GF-THR |
| Nominal current IN (Dimensions) | 8 A |
| Insulating material (Dimensions) | LCP |
| Number of positions (Dimensions) | 10 |
| Dimension a (Key Commercial Data) | 31.5 mm |
| Maximum load current (Dimensions) | 8 A |
| Rated voltage (II/2) (Dimensions) | 250 V |
| Width [ w ] (Key Commercial Data) | 45.3 mm |
| Height [ h ] (Key Commercial Data) | 9.4 mm |
| Length [ l ] (Key Commercial Data) | 9.2 mm |
| Rated voltage (III/2) (Dimensions) | 160 V |
| Rated voltage (III/3) (Dimensions) | 160 V |
| Pin dimensions (Key Commercial Data) | 0.8 x 0.8 mm |
| Weight per Piece (excluding packing) | 4.920 g |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Insulating material group (Dimensions) | IIIa |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Connection in acc. with standard (General) | EN-VDE |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Length of the solder pin (Key Commercial Data) | 1.4 mm |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Printed circuit board base housing, nominal section: 1.5 mm², color: black, nominal current: 8 A, nominal voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 10, nu
