In Stock Hot Product
MBV5000

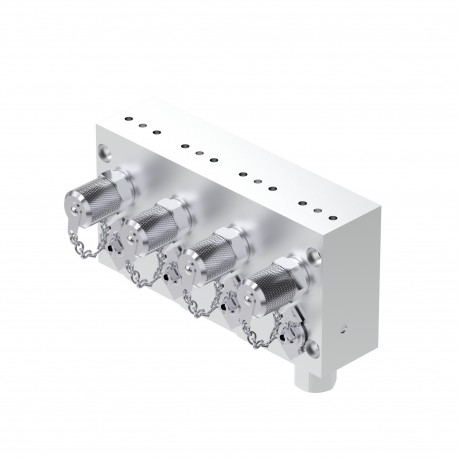

MBV5000 061B7007 DANFOSS REFRIGERATION Test valve
$0.00USD
4972 in stock
Key Specifications
EAN ():5702423059287
Type ():MBV 5000
Volume ():2.23 Liter
Approval ():EACLLC CDC EURO-TYSKRoHS
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423059287 |
| Type () | MBV 5000 |
| Volume () | 2.23 Liter |
| Approval () | EACLLC CDC EURO-TYSKRoHS |
| Net weight () | 1.526 Kg |
| Gross weight () | 1.738 Kg |
| Product group () | Shut-off and regulating valves |
| Pulse-snubber () | No |
| Test function () | Separate |
| Packing format () | Multi pack |
| MiniMess included () | Yes |
| Specification key () | MBV5000-2411 |
| EU RoHS compliance () | No - out of scope |
| Pressure Male/Female () | Female |
| Number of inputs [pc] () | 1 pc |
| Number of outputs [pc] () | 4 pc |
| Output connection type () | Flange |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Product Name Description () | Test valve |
| Quantity per packing format () | 9 pc |
| Pressure connection standard () | DIN 3852-E |
| Pressure thread conn standard () | ISO 228-1 |
| Test pressure connection size () | 16 x 2 |
| Test pressure connection type () | M |
| Pressure range (Pi) [bar] [max] () | 120 bar |
| Pressure range (Pi) [bar] [min] () | 0 bar |
| REACH Candidate List substances () | No |
| Pressure range (Pi) [bar] oil [max] () | 180 bar |
| Pressure range (Pi) [bar] oil [min] () | 0 bar |
| Ambient temperature range [°C] [max] () | 120 °C |
| Ambient temperature range [°C] [min] () | -20 °C |
| Ambient temperature range [°F] [max] () | 248 °F |
| Ambient temperature range [°F] [min] () | -4 °F |
| In scope of WEEE and contain batteries () | No |
Product Description
Test valve, MBV 5000
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
