MBT 152
MBT 152 084Z4304 DANFOSS CONTROLES INDUSTRIALES Sensor MBT 152-001-0100-00-0000
$93.41USD
141 in stock
Key Specifications
EAN ():5702423163731
Type ():MBT 152
Volume ():0.078 Liter
Net weight ():0.052 Kg
Supplier Information
DANFOSS INDUSTRIAL AUTOMATION
Products: 1269
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423163731 |
| Type () | MBT 152 |
| Volume () | 0.078 Liter |
| Net weight () | 0.052 Kg |
| Wires [pcs] () | 2 pc |
| Gross weight () | 0.056 Kg |
| Output signal () | Ohm |
| Product group () | Accessories, sensors |
| Insertion type () | Fixed |
| Packing format () | Multi pack |
| Type designation () | MBT 152-001-0100-00-0000 |
| EU RoHS compliance () | Yes with exemptions |
| Enclosure rating IP () | IP00 |
| Sensor element [pc] () | 1 pc |
| Sensor element type () | Pt |
| Electrical connection () | Cable |
| Extension length [in] () | 1.97 in |
| Extension length [mm] () | 50 mm |
| Insertion length [in] () | 3.94 in |
| Insertion length [mm] () | 100 mm |
| Sensor element standard () | EN 60751 |
| Product Name Description () | Temperature sensor insert |
| Sensor element tolerance () | Class B |
| Number of terminals [pcs] () | 3 pc |
| Electrical connection size () | 2 wire |
| Quantity per packing format () | 12 pc |
| Protection tube diameter [in] () | 0.24 in |
| Protection tube diameter [mm] () | 6 mm |
| Sensor elem. resistance [Ohm] () | 100 |
| Temperature range [°C] [max] () | 200 °C |
| Temperature range [°C] [min] () | -50 °C |
| Temperature range [°F] [max] () | 392 °F |
| Temperature range [°F] [min] () | -58 °F |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1)Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6) |
| In scope of WEEE and contain batteries () | No |
Product Description

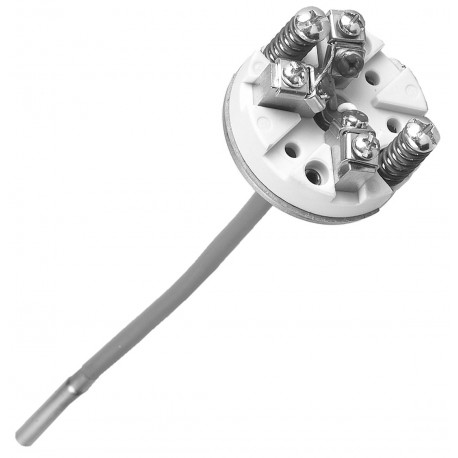

Temperature sensor insert, MBT 152, 100 mm, MBT 152-001-0100-00-0000
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Temperature range [°C]: -50 - 200, Sensor element type: Pt, Sensor elem. resistance [Ohm]: 100, Electrical connection: Cable, Electrical connection size: 2 wire
