MBK-FS/FS BU

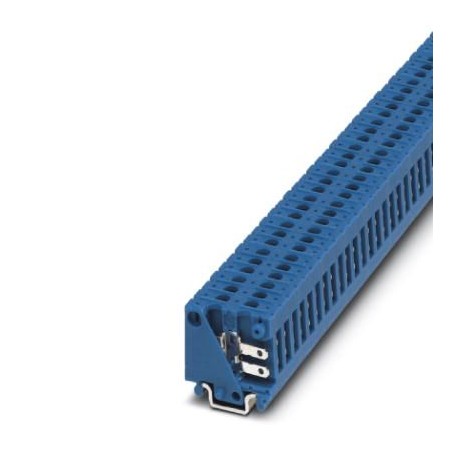

MBK-FS/FS BU 1406098 PHOENIX CONTACT Borne of step, Type of connection: plug Connection plane, Section: 0.5 ..
$0.00USD
3770 in stock
Key Specifications
GTIN:4017918021030
Note:Made to Order (non-returnable)
Orderkey:1406098
Catalog page:Page 313 (CL-2005)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918021030 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1406098 |
| Catalog page | Page 313 (CL-2005) |
| Packing unit | 200 pc |
| Width (General) | 5.2 mm |
| Length (General) | 22 mm |
| Country of origin | DE (Germany) |
| Custom tariff number | 85369010 |
| Color (Key Commercial Data) | blue |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Connection method (Dimensions) | Slip-on connection |
| Slip-on connection (Dimensions) | 6.3/2.8 x 0.8 mm |
| Weight per Piece (excluding packing) | 2.180 g |
| Open side panel (Key Commercial Data) | No |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Number of levels (Key Commercial Data) | 1 |
| Connection method (Key Commercial Data) | Slip-on connection |
| Nominal current IN (Key Commercial Data) | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Nominal voltage UN (Key Commercial Data) | 400 V (voltage data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Degree of pollution (Key Commercial Data) | 3 |
| Insulating material (Key Commercial Data) | PA |
| Rated surge voltage (Key Commercial Data) | 6 kV |
| Maximum load current (Key Commercial Data) | 16 A (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Overvoltage category (Key Commercial Data) | III |
| Number of connections (Key Commercial Data) | 8 |
| Conductor cross section AWG max. (Dimensions) | 18 |
| Conductor cross section AWG min. (Dimensions) | 20 |
| Connection in acc. with standard (Dimensions) | IEC 60947-7-1 |
| Conductor cross section solid max. (Dimensions) | 1 mm² |
| Conductor cross section solid min. (Dimensions) | 0.5 mm² |
| Insulating material group (Key Commercial Data) | I |
| Conductor cross section flexible max. (Dimensions) | 1 mm² |
| Conductor cross section flexible min. (Dimensions) | 0.5 mm² |
| Connection in acc. with standard (Connection data) | IEC 60947-7-1 |
| Connection in acc. with standard (Key Commercial Data) | IEC 60947-7-1 |
| Max. AWG conductor cross section, flexible (Dimensions) | 18 |
| Min. AWG conductor cross section, flexible (Dimensions) | 20 |
| Flammability rating according to UL 94 (Connection data) | V2 |
| Flammability rating according to UL 94 (Key Commercial Data) | V2 |
