MBK 2,5/E-PE

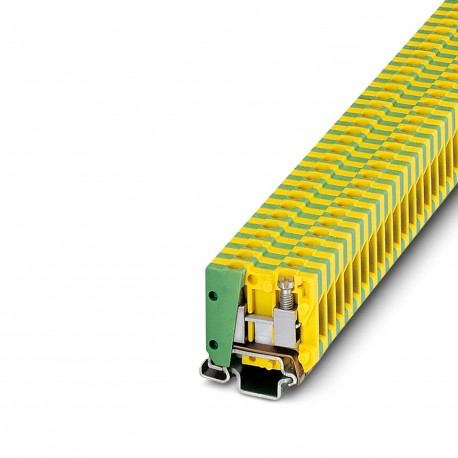

MBK 2,5/E-PE 1402788 PHOENIX CONTACT Mini ground terminal block
$0.00USD
3090 in stock
Key Specifications
Note:Please observe the current carrying capacity of the DIN rails.
Color:green-yellow
Width:5.2 mm
Product type:Miniature terminal block
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Note | Please observe the current carrying capacity of the DIN rails. |
| Color | green-yellow |
| Width | 5.2 mm |
| Product type | Miniature terminal block |
| Screw thread | M3 |
| Mounting type | NS 15 |
| Grounding foot | Yes |
| Number of rows | 1 |
| Open side panel | No |
| Article revision | 05 |
| Stripping length | 7 mm |
| Cross section AWG | 24 ... 14 (converted acc. to IEC) |
| Tightening torque | 0.6 ... 0.8 Nm |
| Degree of pollution | 3 |
| Insulating material | PA |
| Rated surge voltage | 4 kV |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Number of connections | 2 |
| Insulating material group | I |
| Internal cylindrical gage | A3 |
| Conductor cross section rigid | 0.2 mm² ... 2.5 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Number of connections per level | 2 |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Connection in acc. with standard | IEC 60947-7-2 |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 24 ... 14 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Maximum power dissipation for nominal condition | 0.77 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 1.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
Product Description
Mini ground terminal, number of connections: 2, connection type: Screw connection, 1st level, cross-section: 0.2 mm² - 2.5 mm², mounting class: NS 15, color: yellow-green
