MBC5100

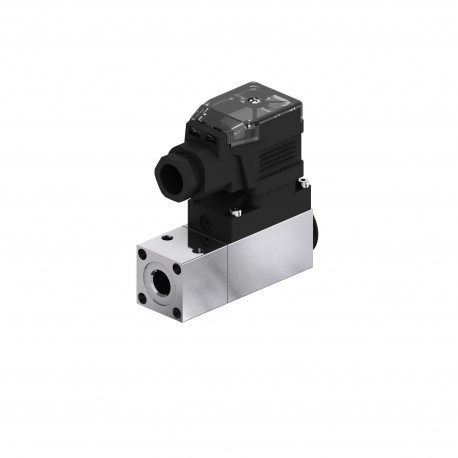

MBC5100 061B000466 DANFOSS REFRIGERATION MBC 5100 Pressure switch M/32
$0.00USD
3418 in stock
Key Specifications
EAN ():5702423213498
Type ():MBC 5100
Volume ():0.647 Liter
Approval ():ABSBVCCCCCSCECMIMDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSK
Supplier Information
DANFOSS REFRIGERATION
Products: 8639
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN () | 5702423213498 |
| Type () | MBC 5100 |
| Volume () | 0.647 Liter |
| Approval () | ABSBVCCCCCSCECMIMDNVEACGLKRSLLC CDC EURO-TYSKLRLVDNKKRINARMRSRoHSRoHS ChinaTYSK |
| Net weight () | 0.246 Kilogram |
| Serviceable () | No |
| CE evaluated () | Yes |
| Gross weight () | 0.296 Kilogram |
| Product group () | Switches and thermostats |
| Contact rating () | AC15=0.5 A, 250 VDC13=12 W, 125 V |
| Packing format () | Multi pack |
| Reset function () | Auto |
| Contact function () | SPDT |
| SCIP dossier no. () | 69958bd3-3b22-42dc-aa8a-888e92c5e7e8 |
| Contain batteries () | No |
| Specification key () | 1211-1DB04 |
| EU RoHS compliance () | Out of scope |
| UK RoHS compliance () | Out of scope |
| Enclosure rating IP () | IP65 |
| Product accessories () | Switches accessories |
| Product description () | Pressure Switch |
| Burst pressure [bar] () | 30 bar |
| Pressure Male/Female () | Female |
| China RoHS compliance () | Yes |
| Electrical connection () | DIN-plug |
| Other RoHS documentation () | Saudi Arabia RoHS |
| Pressure connection size () | 1/4 |
| Pressure connection type () | G |
| Pressure sensing element () | Bellows |
| Product Name Description () | Pressure switch |
| Electrical spec. standard () | EN 60947-5 |
| Max. test pressure [psig] () | 218 psig |
| Pressure connection notes () | With flange |
| SCIP dossier product name () | MBC 5100 5000 Pressure Switch |
| Electrical connection size () | Pg 11 |
| Max. Working Pressure [bar] () | 15 bar |
| Max. test pressure [bar] Pe () | 15 bar |
| Quantity per packing format () | 32 pc |
| Electrical conn. Male/Female () | Female |
| Max. Working Pressure [psig] () | 220 psig |
| Pressure connection standard () | ISO 228-1 |
| Diff.@Max. range setting [bar] () | 0.45 bar |
| Diff.@Min. range setting [bar] () | 0.3 bar |
| Electrical connection standard () | EN 175301-803-A |
| REACH Candidate List substances () | Lead (CAS no. 7439-92-1) |
| Regulation range [MPa] Pe [max] () | 0.4 MPa |
| Regulation range [MPa] Pe [min] () | -0.02 MPa |
| Regulation range [bar] Pe [max] () | 4 bar |
| Regulation range [bar] Pe [min] () | -0.2 bar |
| Ambient temperature range [°C] [max] () | 85 °C |
| Ambient temperature range [°C] [min] () | -40 °C |
| Ambient temperature range [°F] [max] () | 185 °F |
| Ambient temperature range [°F] [min] () | -40 °F |
Product Description
Pressure switch, MBC 5100
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Regulation range [bar] Pe: -0.2 - 4, Reset function: Auto, Pressure connection type: G, Pressure connection size: 1/4, Enclosure rating IP: IP65, Max. Working Pressure [bar]: 15
