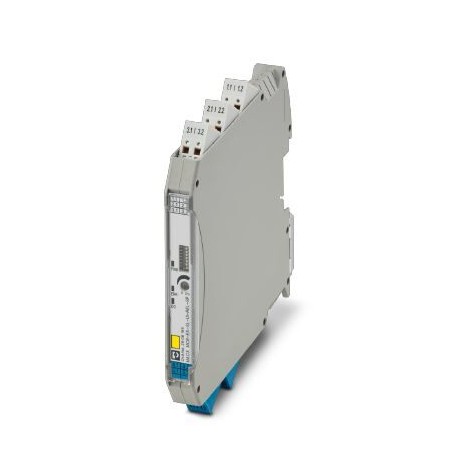

MACX MCR-EX-SL-UI-REL-SP
MACX MCR-EX-SL-UI-REL-SP 2906165 PHOENIX CONTACT Limit value switch with Ex i input for active current and v..
$0.00USD
3231 in stock
Key Specifications
GTIN:4055626043739
Orderkey:2906165
(Drawings):
Catalog page:Page 168 (C-5-2019)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626043739 |
| Orderkey | 2906165 |
| (Drawings) | |
| Catalog page | Page 168 (C-5-2019) |
| Packing unit | 1 |
| (Input data) | ≤ 0.2 A DC (ohmic load, 120 V DC) |
| (Safety data) | IIB/IIIC |
| Group (General) | IIB/IIIC |
| Depth (Drawings) | 114.5 mm |
| Width (Drawings) | 12.5 mm |
| ETIM 4.0 (eCl@ss) | EC002653 |
| ETIM 5.0 (eCl@ss) | EC002653 |
| ETIM 6.0 (eCl@ss) | EC002653 |
| ETIM 7.0 (eCl@ss) | EC002653 |
| Height (Drawings) | 99 mm |
| ATEX (Safety data) | II (1) G [Ex ia Ga] IIC |
| Group (Safety data) | IIC |
| IECEx (Safety data) | [Ex ia Ga] IIC |
| (Connection data 2) | Ex ec nC [ia Ga] IIC T4 Gc |
| Custom tariff number | 85437090 |
| (Ambient conditions) | Short circuit U > 10.8 V, I > 21.1 mA |
| SIL (Connection data 2) | 2 |
| ATEX (Connection data 2) | II (1) G [Ex ia Ga] IIC |
| Input power Pi (General) | 900 mW (Current and voltage input) |
| Output name (Input data) | Relay output |
| Conformance (Safety data) | CE-compliant, additionally EN 61326 |
| Contact type (Input data) | 1 PDT |
| IECEx (Connection data 2) | [Ex ia Ga] IIC |
| Input current Ii (General) | 120 mA (Current and voltage input) |
| Input voltage Ui (General) | 30 V (Current and voltage input) |
| Noise immunity (Dimensions) | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Noise emission (Safety data) | EN 61000-6-4 |
| UL, USA/Canada (Safety data) | UL applied for |
| eCl@ss 4.0 (Classifications) | 27210100 |
| eCl@ss 4.1 (Classifications) | 27210100 |
| eCl@ss 5.0 (Classifications) | 27210100 |
| eCl@ss 5.1 (Classifications) | 27210100 |
| eCl@ss 6.0 (Classifications) | 27210100 |
| eCl@ss 7.0 (Classifications) | 27210120 |
| eCl@ss 8.0 (Classifications) | 27210120 |
| eCl@ss 9.0 (Classifications) | 27210120 |
| Contact material (Input data) | AgSnO2, hard gold-plated |
| Maximum altitude (Dimensions) | ≤ 2000 m |
| Max. output power Po (General) | 0 mW (Current input) |
| Conformance (Connection data 2) | CE-compliant, additionally EN 61326 |
| Designation (Connection data 2) | Input/supply, DIN rail connector |
| Max. diameter (Connection data) | 2 mm |
| Power consumption (Output data) | ≤ 1.2 W |
| Power dissipation (Output data) | < 0.9 W |
| Stripping length (Power supply) | 8 mm |
| Connection method (Power supply) | Spring-cage connection |
| Max. output current Io (General) | 0 mA (Current input) |
| Max. output voltage Uo (General) | 0 V DC (Current input) |
| Connection name (Connection data) | Test socket |
| Degree of protection (Dimensions) | IP20 |
| Signal input (Ambient conditions) | Intrinsically safe |
| Status display (Connection data 2) | Green LED (supply voltage, PWR) |
| Supply voltage range (Output data) | 9.6 V DC ... 30 V DC (12 V DC ... 24 V DC (-20 % ... +25 %)) |
| UL, USA/Canada (Connection data 2) | UL applied for |
| Max. switching current (Input data) | ≤ 4 A AC (cos phi = 1) |
| Housing material (Connection data 2) | PA 6.6-FR |
| Mechanical service life (Input data) | ≤ 107cycles |
| Nominal supply voltage (Output data) | 24 V DC |
| Max. internal inductance Li (General) | negligible |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Max. current consumption (Output data) | 90 mA (10 V DC) |
| Max. external capacitance Co (General) | 35 µF |
| Max. external inductivity Lo (General) | 1 mH |
| Max. internal capacitance Ci (General) | 75 nF (for current input) |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of pollution (Connection data 2) | 2 |
| Electrical isolation (Connection data 2) | 375 V (Peak value in accordance with EN 60079-11) |
| Overvoltage category (Connection data 2) | II |
| Current input signal (Ambient conditions) | 0.2 mA ... 20 mA |
| Interference emission (Connection data 2) | EN 61000-6-4 |
| Line fault detection (Ambient conditions) | Break U |
| Switching hysteresis (Ambient conditions) | off: approx. 0.5 %, on: approx. 1 % |
| Typical current consumption (Output data) | 38 mA (24 V DC) |
| Voltage input signal (Ambient conditions) | 0.1 V ... 10 V |
| Conductor cross section AWG (Power supply) | 24 ... 14 |
| Electromagnetic compatibility (Safety data) | Conformance with EMC directive |
| Safety-related maximum voltage Um (General) | 253 V AC |
| Step response (0–99%) (Connection data 2) | ≤ 22 ms |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 65 °C (Any mounting position) |
| Conductor cross section solid (Power supply) | 0.2 mm² ... 2.5 mm² |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % (non-condensing) |
| Maximum transmission error (Connection data 2) | 0.1 % |
| Conductor cross section flexible (Power supply) | 0.2 mm² ... 2.5 mm² |
| Electromagnetic compatibility (Connection data 2) | Conformance with EMC directive |
| Input resistance current input (Ambient conditions) | < 28 Ω |
| Maximum temperature coefficient (Connection data 2) | 0.01 %/K |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Input resistance of voltage input (Ambient conditions) | > 100 kΩ |
Product Description
Limit value switch with intrinsically safe input for active voltage and current signals and a limit value relay output (switched contact). Adjustable with DIP switch and potentiometer, 3-way galvanic
