M23-5EP198A8022S

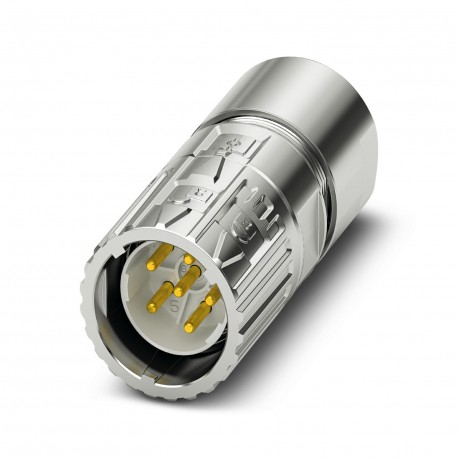

M23-5EP198A8022S 1628874 PHOENIX CONTACT Cable connector, M23 PRO, straight short, shielded: yes, ONECLICK f..
$0.00USD
3670 in stock
Key Specifications
:• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Note:Order information: Order crimp contacts 6 x Ø 2 mm separately
Application:Power
Safety note:WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
| Note | Order information: Order crimp contacts 6 x Ø 2 mm separately |
| Application | Power |
| Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
| Thread type | M23 |
| Product type | Circular connector (cable-side) |
| Rated voltage | 630 V |
| Seal material | FKM |
| Type of locking | ONECLICK fast locking system |
| Article revision | 05 |
| Housing material | GD-Zn |
| Connection method | Crimp connection |
| Connection profile | 5+PE |
| Order information: | Order crimp contacts 6 x Ø 2 mm separately |
| Degree of pollution | 3 |
| Installation height | 3000 m |
| Number of positions | 6 |
| Pg screw connection | none |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Permanent temperature | 125 °C (DIN EN 60512-9-2 / 1000 h) |
| Contact switching type | Pin |
| External cable diameter | 5.5 mm ... 8 mm |
| Insulation body material | PA 6.6 |
| Insertion/withdrawal cycles | 100 |
| Rated currentPower contacts | 30 A |
| Contact diameterPower contacts | 2 mm |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Degree of protection (plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
| Litz wire cross-sectionPower contactsmax. | 4 mm² |
| Litz wire cross-sectionPower contactsmin. | 0.25 mm² |
Product Description
M23, Cable connector, M23 PRO, Short straight, shielded: yes, Quick lock ONECLICK, No. of poles: 5+PE, contact type: Male, Crimped connection, cable diameter range: 5.5 mm ... 8 mm, The item does not
