M23-19S1N129004S

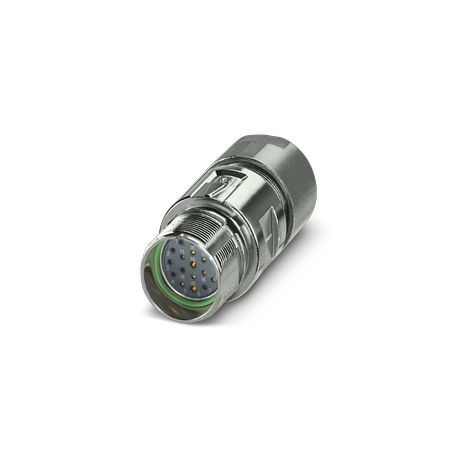

M23-19S1N129004S 1467484 PHOENIX CONTACT M23, Mating connector, series: M23 PRO, straight, shielded: yes, fo..
$26.22USD
425 in stock
Key Specifications
:• WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them.
General:Look at the rating curve.
Altitude:2000 m
Lock Type:for ONECLICK and standard quick lock
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| • WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them. | |
| General | Look at the rating curve. |
| Altitude | 2000 m |
| Lock Type | for ONECLICK and standard quick lock |
| Plug Face | 16+3 |
| Observation | In the case of connection cross-section max. |
| Plug Cycles | 100 |
| Thread Type | M23 |
| application | Signal |
| Codification | N |
| Product Type | Circular connector (cable side) |
| Safety Notes | WARNING: Connectors should not be plugged in or unplugged under load. Failure to comply and improper use can result in property damage and personal injury. |
| Shell material | GD-Zn |
| Surge Category | Ii |
| Connection type | Welding connection |
| Gasket material | FKM |
| Mounting Height | 2000 m |
| Nominal voltage | 150 V |
| Number of poles | 19 |
| Pg Cable Glands | without |
| Degree of pollution | 3 |
| Cable Outer Diameter | 9 mm ... 15 mm |
| Direction of rotation | Standard |
| Permanent Temperature | 125 °C (DIN EN 60512-9-2 / 1000 h) |
| Contact Switching Type | Female |
| Material: Insulating body | AP 6.6 |
| Protection Index (inserted) | IP66 / IP68 (2 m / 24 h) |
| Rated CurrentPower Contacts | 10 A |
| Ambient Temperature (Service) | -40 °C ... 105 °C (see derating) |
| Contact DiameterPower Contacts | 1.5 mm |
| Dimensioning Transient Voltage | 1.5 kV |
| Contact DiameterSignal Contacts | 1 mm |
| Nominal voltage Warning contact | 150 V |
| Nominal current per signal contact | 8 A |
| Braided yarn sectionPower ContactsMax. | 1 mm² |
| Braided yarn sectionPower Contactsmin. | 0.08 mm² |
| Braided yarn sectionSignal ContactsMax. | 1 mm² |
| Braided yarn sectionSignal Contactsmin. | 0.08 mm² |
Product Description
M23, Plug-in mating connector, M23 PRO, straight, shielded: yes, for ONECLICK and standard quick lock, No. of poles: 16+3, Direction of rotation: Standard, contact type: Female, Soldered connection, c
