In Stock Hot Product
M23-00000008002-SIG

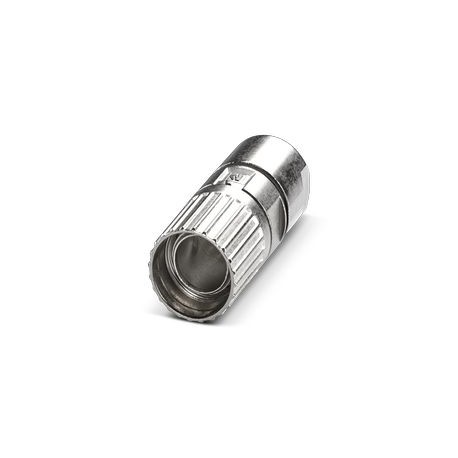

M23-00000008002-SIG 1554094 PHOENIX CONTACT Overhead housing for plug-in connector for cables
$10.20USD
1012 in stock
Key Specifications
Type:straight
Series:M23 PRO Signal
General:Order contact inserts separately
Altitude:2000 m
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | straight |
| Series | M23 PRO Signal |
| General | Order contact inserts separately |
| Altitude | 2000 m |
| Shielded | yes |
| Application | Signal |
| Thread type | M23 |
| Product type | Sleeve housings |
| Seal material | FKM |
| Type of locking | Screw locking mechanism |
| Housing material | GD-Zn |
| Cross section AWG | (converted acc. to IEC) |
| Pg screw connection | none |
| Degree of protection | IP66 / IP68 (2 m / 24 h) |
| External cable diameter | 4 mm ... 8.5 mm |
| Insertion/withdrawal cycles | 100 |
| Ambient temperature (operation) | -40 °C ... 105 °C (see to derating) |
| Degree of protection (plugged in) | IP66 / IP68 (2m / 24h) / IP69K |
Product Description
Cable connector, series: M23 PRO Signal, straight, screw locking mechanism, shielded: yes, note: can only be used in combination with the contact inserts listed under accessories; for safety notes and
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
