In Stock Hot Product
M22-WJS2H

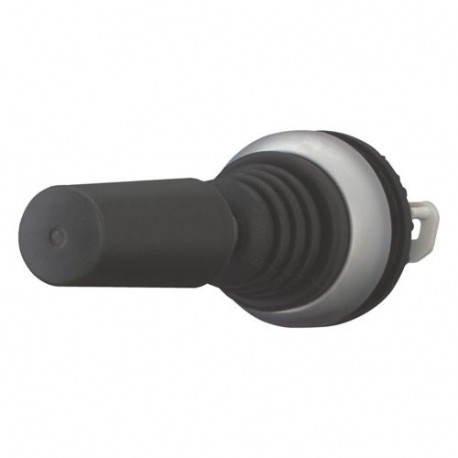

M22-WJS2H 178570 Y7-178570 EATON ELECTRIC Joystick 2 positions horizontal momentary metal shaft
$0.00USD
4882 in stock
Key Specifications
Feature Name:Feature Value
Coder (EF005666):No
With front ring (EF006014):Yes
Joy stick length (EF006524):75 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Coder (EF005666) | No |
| With front ring (EF006014) | Yes |
| Joy stick length (EF006524) | 75 mm |
| Colour front ring (EF002429) | Titanium |
| Material front ring (EF005972) | Plastic |
| Locking in 0-position (EF006283) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Number of switch positions (EF000231) | 1 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
| With retraction in 0-position (EF002428) | Yes |
| Centre mounting, hole diameter (EF002424) | 22.5 mm |
| Number of actuation directions (EF002425) | 2 |
| Analogue output signal configurable (EF003236) | No |
| Rated operation current Ie at AC-21, 400 V (EF002417) | 0 A |
| Number of make-and-break contacts per direction (EF005599) | 0 |
| Number of normally open contacts per actuation direction (EF002427) | 0 |
| Number of normally closed contacts per actuation direction (EF008263) | 0 |
Product Description
M22-WJS2H
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
