M22-PV/KC02/IY

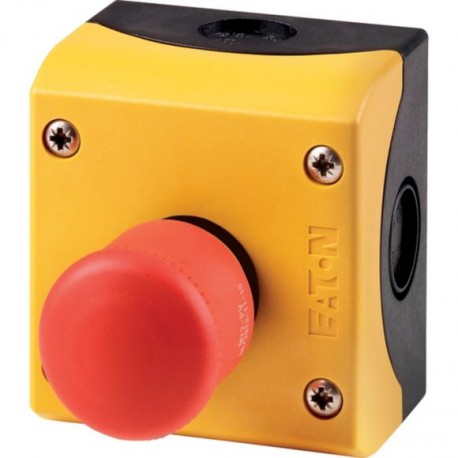

M22-PV/KC02/IY 216524 Y7-216524 EATON ELECTRIC Emergency-stop key-release mushroom, 2 N/C, surface mounting
$0.00USD
4013 in stock
Key Specifications
Feature Name:Feature Value
Housing colour (EF000136):Yellow
Housing material (EF001596):Plastic
Colour housing cover (EF001373):Yellow
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Housing colour (EF000136) | Yellow |
| Housing material (EF001596) | Plastic |
| Colour housing cover (EF001373) | Yellow |
| Number of key switches (EF005590) | 0 |
| Number of push buttons (EF005558) | 0 |
| Degree of protection (IP) (EF005474) | Other |
| Number of indicator lights (EF001965) | 0 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
| Number of command positions (EF001372) | 1 |
| Number of selector switches (EF005567) | 0 |
| Suitable for emergency stop (EF001433) | Yes |
| Rated control supply voltage DC (EF003980) | 24 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 115 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 115 V |
| Number of mushroom-shaped push-buttons (EF006670) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
Product Description
M22-PV/KC02/IY
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
