In Stock Hot Product
M22-DGL-X

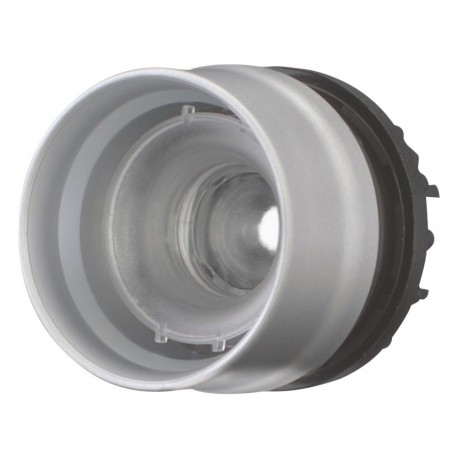

M22-DGL-X 230961 Y7-230961 EATON ELECTRIC Illuminated pushbutton actuator, without button plate, protected
$0.00USD
4458 in stock
Key Specifications
Feature Name:Feature Value
Labelled (EF001537):No
Colour button (EF000190):Without button plate
Hole diameter (EF000079):22.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Labelled (EF001537) | No |
| Colour button (EF000190) | Without button plate |
| Hole diameter (EF000079) | 22.5 mm |
| Spring-return (EF001407) | Yes |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Type of button (EF001546) | Flat |
| With front ring (EF006014) | Yes |
| Colour front ring (EF002429) | Titanium |
| Material front ring (EF005972) | Plastic |
| Suitable for lighting (EF001142) | Yes |
| With protective cover (EF005500) | No |
| Construction type lens (EF006253) | Round |
| Number of command positions (EF001372) | 1 |
| Switching function latching (EF007447) | No |
| Degree of protection (IP), front side (EF003118) | IP67/IP69K |
| Degree of protection (NEMA), front side (EF011961) | 4X |
Product Description
M22-DGL-X
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
