LZX:RT315024

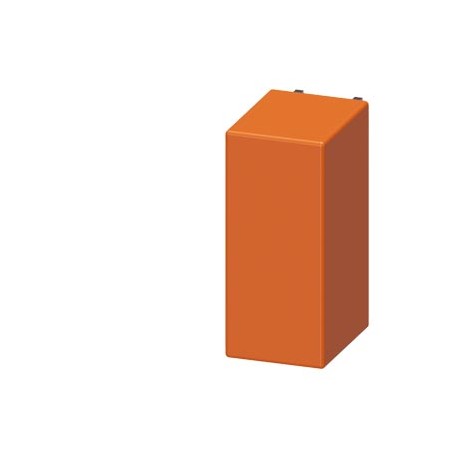

LZX:RT315024 SIEMENS Plug-in relay 1 change-over contact, hard gold-plated 24 V DC, for LZS sockets
$0.00USD
3877 in stock
Key Specifications
:VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1439-12-23-34UNSPSC1539-12-23-26
EAN:4011209570993
UPC:754554892283
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1439-12-23-34UNSPSC1539-12-23-26 | |
| EAN | 4011209570993 |
| UPC | 754554892283 |
| ETIM | 5 |
| depth | 19.5 mm |
| width | 12.7 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 29 mm |
| Group Code | R711 |
| Confirmation | |
| Date5/9/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Metal Factor | LD------ |
| ● at 250 V | 6 A |
| Product Group | 5816 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85364190 |
| Product family | LZS coupling relays with plug-in relays |
| last modified: | 1/8/2021 |
| Net Weight (kg) | 0,015 Kg |
| thermal current | 16 A |
| type of voltage | DC |
| ● rated value | 24 V |
| Depth (EF000049) | 19.5 |
| Width (EF000008) | 12.7 |
| fastening method | base mounting |
| Country of origin | Austria |
| Height (EF000040) | 29.0 |
| mounting position | any |
| ● initial value | 0.9 |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| product brand name | SIRIUS |
| switching behavior | monostable |
| ● during storage | -40 ... +85 °C |
| Packaging Dimension | 19,00 x 29,00 x 13,00 |
| Product Description | Plug-in relay 1 change-over contact, hard gold-plated 24 V DC, for LZS sockets |
| ambient temperature | |
| product designation | Plug-in relay |
| ● during operation | -40 ... +85 °C |
| ● during transport | -40 ... +85 °C |
| ● full-scale value | 1.4 |
| consumed active power | 400 mW |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| product type designation | LZX |
| type of switching contact | Changeover contact |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 2 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| Substance Prohibitance (Date) | 05/01/2012 |
| operating frequency with load | 360 1/h |
| Drive, polarization (EF003355) | Polarized |
| With LED indication (EF005950) | - |
| material of switching contacts | AgNi 90/10-HTV |
| Complete with socket (EF003359) | false |
| design of the switching function | changeover switch |
| operating frequency without load | 72 000 1/h |
| product component plug-in socket | No |
| Type of switch contact (EF003358) | Single contact |
| With detachable clamps (EF003340) | false |
| product function removable terminal | No |
| Degree of protection (IP) (EF005474) | - |
| Drive, switching attitude (EF003356) | Mono stable |
| Article Number (Market Facing Number) | LZX:RT315024 |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | No |
| With forced-guided contacts (EF003357) | false |
| design of the relay operating mechanism | poled |
| reference code according to IEC 81346-2 | K |
| number of CO contacts for auxiliary contacts | 1 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| shock resistance according to IEC 60068-2-27 | 5g / 11 ms |
| vibration resistance according to IEC 60068-2-6 | 30 ... 150 Hz: 5g |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| design of the switching function positively driven | No |
| mechanical service life (switching cycles) typical | 30 000 000 |
| operational current of auxiliary contacts at AC-15 | |
| Number of contacts as change-over contact (EF008257) | 1 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| percental drop-out voltage related to the input voltage | 10 % |
| Number of contacts as normally closed contact (EF008255) | 0 |
| ampacity of the output relay at AC-15 at 250 V at 50/60 Hz | 6 A |
| operating range factor control supply voltage rated value at DC | |
| electrical endurance (switching cycles) at AC-15 at 230 V typical | 100 000 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | 4,4'-isopropylidened... CAS-No. 80-05-7 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):4,4'-isopropylidenediphenol (Bisphenol A, BPA)Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| General Product ApprovalDeclaration of ConformityotherConfirmationUK Declaration of ConformityConfirmation | General Product Approval |
