In Stock Hot Product
LZS:PTMT00A0

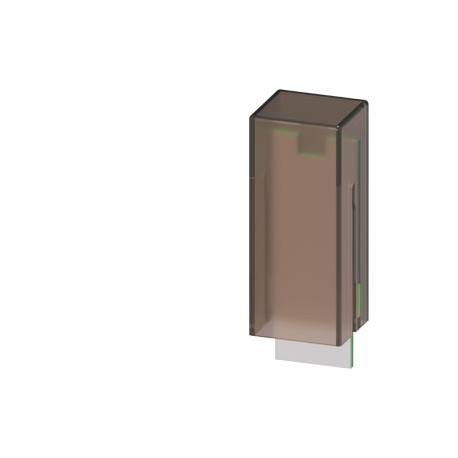

LZS:PTMT00A0 SIEMENS Freewheeling diode with connection to A1 6-230 V DC
$0.00USD
4001 in stock
Key Specifications
:VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1439-12-15-21UNSPSC1539-12-23-26
EAN:4011209675025
UPC:754554948775
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1439-12-15-21UNSPSC1539-12-23-26 | |
| EAN | 4011209675025 |
| UPC | 754554948775 |
| ETIM | 5 |
| depth | 32 mm |
| width | 11.4 mm |
| UNSPSC | 14 |
| eClass | 6 |
| height | 10.5 mm |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/14/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5816 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85366190 |
| Product family | LZS coupling relays with plug-in relays |
| last modified: | 12/23/2020 |
| Net Weight (kg) | 0,002 Kg |
| type of voltage | DC |
| ● rated value | 6 ... 230 V |
| Depth (EF000049) | - |
| Width (EF000008) | 15.5 |
| Country of origin | Slovakia |
| Height (EF000040) | - |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| ● during storage | -25 ... +70 °C |
| Packaging Dimension | 11,00 x 32,00 x 12,00 |
| Product Description | Freewheeling diode with connection to A1 6-230 V DC |
| ambient temperature | |
| display version LED | No |
| protection class IP | IP00 |
| ● during transport | -25 ... +70 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| General Product Approval | Declaration of Conformity |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| control supply voltage at DC | |
| Substance Prohibitance (Date) | 05/01/2012 |
| Drive, polarization (EF003355) | - |
| With LED indication (EF005950) | false |
| Complete with socket (EF003359) | false |
| product component plug-in socket | No |
| Type of switch contact (EF003358) | - |
| With detachable clamps (EF003340) | false |
| product function removable terminal | No |
| Degree of protection (IP) (EF005474) | IP00 |
| Drive, switching attitude (EF003356) | - |
| Article Number (Market Facing Number) | LZS:PTMT00A0 |
| Voltage type for actuating (EF008242) | DC |
| Type of electric connection (EF003961) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With forced-guided contacts (EF003357) | false |
| reference code according to IEC 81346-2 | R |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| Rated control supply voltage Us at DC (EF003980) | ['6', '230'] |
| design of the switching function positively driven | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
| General Product ApprovalDeclaration of ConformityConfirmationUK Declaration of ConformityotherConfirmation | General Product Approval |
