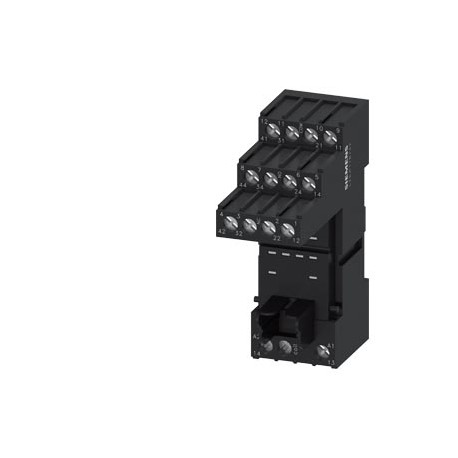

LZS:PT78742 SIEMENS Plug-in socket for PT relay 4 changeover contacts with logic isolation screw terminal
$0.00USD
4465 in stock
Key Specifications
:VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1539-12-23-26
EAN:4011209674851
UPC:754554951126
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-37-16-01eClass7.127-37-16-01eClass827-37-16-01eClass927-37-16-01eClass9.127-37-16-01ETIM5EC001437ETIM6EC001437ETIM7EC001437ETIM8EC001437UNSPSC1539-12-23-26 | |
| EAN | 4011209674851 |
| UPC | 754554951126 |
| ETIM | 5 |
| depth | 61 mm |
| width | 27 mm |
| UNSPSC | 15 |
| eClass | 6 |
| height | 77 mm |
| ● solid | 1x (1,0 ... 2,5), 2x 1,0, 2x 1,5, 2x 2,5 |
| Group Code | R711 |
| Confirmation | |
| Metal Factor | None |
| Date5/11/2022 | Subject to change without notice© Copyright Siemens 2022 |
| Product Group | 5816 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369095 |
| Product family | LZS coupling relays with plug-in relays |
| last modified: | 1/15/2021 |
| Net Weight (kg) | 0,070 Kg |
| Depth (EF000049) | 77.0 |
| Width (EF000008) | 28.0 |
| fastening method | snap-on mounting |
| Country of origin | China |
| Height (EF000040) | - |
| mounting position | any |
| LKZ_FDB/ CatalogID | CC-IC10 |
| Packaging Quantity | 1 |
| switching behavior | monostable |
| ● during storage | -25 ... +70 °C |
| Packaging Dimension | 62,00 x 77,00 x 27,00 |
| Product Description | Plug-in socket for PT relay 4 changeover contacts with logic isolation screw terminal |
| ambient temperature | |
| display version LED | No |
| protection class IP | IP20 |
| ● during operation | -40 ... +70 °C |
| ● during transport | -25 ... +70 °C |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● at AWG cables solid | 1x (18 ... 14), 2x 18, 2x 16, 2x 14 |
| General Product Approval | other |
| Export Control Regulations | AL : N / ECCN : N |
| Nominal current (EF000001) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Substance Prohibitance (Date) | 05/01/2012 |
| type of electrical connection | screw-type terminals |
| Drive, polarization (EF003355) | Polarized |
| With LED indication (EF005950) | false |
| Complete with socket (EF003359) | true |
| design of the switching function | changeover switch |
| product component plug-in socket | Yes |
| Type of switch contact (EF003358) | - |
| With detachable clamps (EF003340) | false |
| design of the snap-on socket base | Socket with logic isolation |
| connectable conductor cross-section | |
| product function removable terminal | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Drive, switching attitude (EF003356) | Mono stable |
| Article Number (Market Facing Number) | LZS:PT78742 |
| Voltage type for actuating (EF008242) | - |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| With forced-guided contacts (EF003357) | false |
| design of the relay operating mechanism | poled |
| reference code according to IEC 81346-2 | U |
| tightening torque with screw-type terminals | 0.5 ... 0.7 N·m |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| type of connectable conductor cross-sections | |
| ● finely stranded with core end processing | 1x (1.0 ... 1.5), 2x 1.0, 2x 1.5 |
| Rated control supply voltage Us at DC (EF003980) | ['-', '-'] |
| design of the switching function positively driven | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Region Specific PriceGroup / Headquarter Price Group | 41H / 41H |
| General Product ApprovalotherConfirmationConfirmation | General Product Approval |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - |
| Number of contacts as normally open contact (EF008256) | 0 |
| AWG number as coded connectable conductor cross section | |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
