In Stock Hot Product
LTS11CH

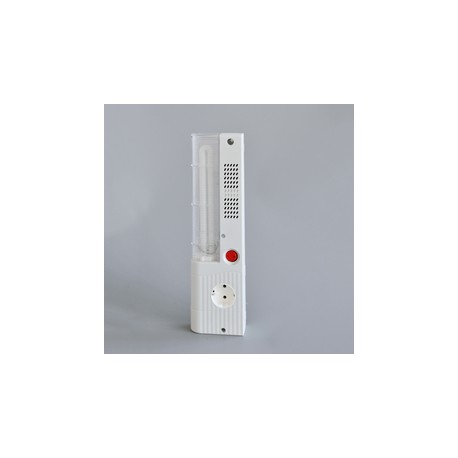

LTS11CH ELDON Light 11W + CH socket LTS11CH
$0.00USD
4822 in stock
Key Specifications
Approvals:CE, EAC
Socket type:Switzerland
Characteristics:
Operating voltage:230 V, 50/60 Hz
Supplier Information
ELDON
Products: 4827
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Approvals | CE, EAC |
| Socket type | Switzerland |
| Characteristics | |
| Operating voltage | 230 V, 50/60 Hz |
| Benefit: (Features) | The enclosure light provides a flexible solution as it can be mounted to any metallic surface. The light ensures both, operation and maintenance procedures can be performed safely, in the field. |
| Comment: (Features) | It is highly recommended to install a door switch to improve the enclosure's energy consumption. |
| Feature: (Features) | Fluorescent enclosure light with integrated socket, available with different voltages, frequencies and socket types. |
| Advantage: (Features) | Off the shelf enclosure light, can be installed into enclosures that are located within different countries. The light can be easily mounted onto the enclosure's surfaces. |
| Document (PDF) (Features) | cRUus_UL Recognized |
| Lamp type: (Technical data) | Compact fluorescent lamp, 2G7 socket. |
| Dimensions: (Technical data) | 345 x 91 x 40 mm. |
| Luminosity: (Technical data) | 900 Lm. |
| Connections: (Technical data) | Terminal 2.5 mm² with cable clamp, torque 0.8Nm max. |
| Description: (Technical data) | Energy saving lighting system suitable for all types of panels and enclosures, especially where space is at a premium. It is made of light grey plastic (ABS-PC) according to UL94 V-0. The lamp can be mounted on its narrow or broad surface using screws, or magnetically in any position in a mild steel enclosure. It has electronic ballast, and its life service is of 10,000 h. An integrated electrical socket enables the use of additional appliances and it is provided with a protection cap. |
| Power consumption: (Technical data) | 11 W. |
| Operating temperature: (Technical data) | -20ºC to +50ºC. |
Product Description
Light of 11 watt with plug CH, 230 V, 50/60 Hz
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
This enclosure light, with an integrated socket, can be mounted to any metallic surface and helps perform operations and maintenance in the field.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
