LS4ER/0B-080M

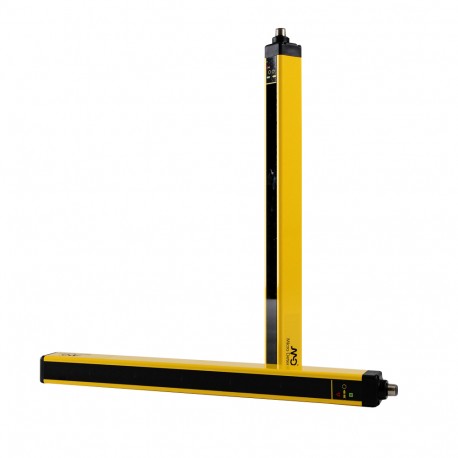

LS4ER/0B-080M MICRO DETECTORS Safety sensor R 3 beams h 800mm max. range 12m master auto-manual restart EDM
$0.00USD
4722 in stock
Key Specifications
PL:e
CFF:80%
SIL:3
PFHd:7,55E-08
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | e |
| CFF | 80% |
| SIL | 3 |
| PFHd | 7,55E-08 |
| Type | 4 |
| Dcavg | 96,20% |
| MTTFd | 100 |
| SILCL | 3 |
| humidity | 95% (no condensation) |
| Approvals | CE, cULus, TÜV |
| Dimensions | 28mm (front) x 30mm |
| Connections | 2 x M12-5 poles (emitter)M12-8 poles + M12-5 poles (receiver) |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Load current | ≤ 400mA |
| Response time | 3ms |
| number of rays | 3 |
| Capacitive Load | ≥ 0,82 µF |
| EMC compatibility | According to 2014/30/EU Directive |
| Operating Voltage | 19,2 … 28,8 Vcc |
| controlled height | 800mm |
| Function Principle | Emitter + Receiver |
| Available functions | Manual/Automatic Restart, EDM |
| Storage temperature | -25°C ÷ +70°C (no condensation) |
| Degree of protection | IP65, IP67 |
| Supplied Accessories | ST 204 4S |
| Operating temperature | -10°C ÷ +55°C (no condensation) |
| Shocks and vibrations | according to IEC 61496-1 |
| Effective Aperture Angle | ±5° |
| Nominal sensing distance | ≤ 12m |
| Equivalent Resistive Load | ≥ 60 Ω |
| Power Consumption - Emitter | 1W |
| Power Consumption - Receiver | 2W (no load) |
| Interference to external light | according to IEC 61496-2 |
| Response Time (Master + Slave) | T=[0,11*(Tslave+Tmaster)+0,9376]*2 |
| Time delay before availability | 2s |
| Response Time (Master + 2 Slave) | T=[0,11*(Tslave1+Tslave2+Tmaster)+1,0508]*2 |
| Cabel Length (Power Supply/Output) | ≤ 100m |
| Cable Length for Master Slave Interconnections | ≤ 50m |
Product Description
LS4ER/0B-080M Safety sensor R=3 beams h=800mmmax. range=12mmaster - auto-manual restart + EDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
