LS45M00B02

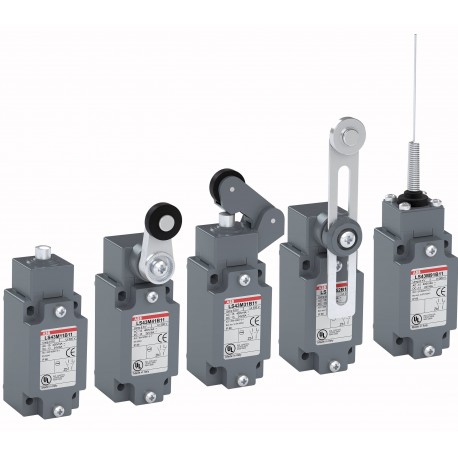

LS45M00B02 1SBV013100R1202 ABB LS45M00B02 Limit Switch
$0.00USD
4064 in stock
Key Specifications
:Bar 0.5 ... 2.5 mm²
ETIM 6:EC000030 - End switch
ETIM 7:EC000030 - End switch
ETIM 8:EC000030 - End switch
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Bar 0.5 ... 2.5 mm² | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| UNSPSC | 39122213 |
| eClass | V11.1 : 27270601 |
| B10d Value | Operations 50 Millions |
| RoHS Status | Following EU Directive 2011/65/EU |
| Actuator Type | without operating head |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| Actuation Speed | acc. to IEC 60947-5-1Min. 0 m/s |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| RoHS Information | 1SBD251097E1000 |
| Terminal Marking | according to EN 50013 |
| Pilot Duty UL/CSA | A600 |
| Product Net Width | 40 mm |
| REACH Declaration | 1SBD251097E1000 |
| Climatic Withstand | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 when an operating head is fitted on |
| Product Net Height | 82 mm |
| Product Net Weight | 0.156 kg |
| Connecting Capacity | Bar AWG 20 ... AWG 14 mm² |
| Package Level 1 EAN | 3471522616845 |
| Rated Frequency (f) | Supply Circuit 50 / 60 Hz |
| Degree of Protection | acc. to IEC 60529 IP66 |
| Customs Tariff Number | 85364900 |
| Mechanical Durability | 0 cycle |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 45 mm |
| Minimum Order Quantity | 10 piece |
| Package Level 1 Height | 130 mm |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Angular Head Adjustment | without operating head |
| Instructions and Manuals | 1SBC141157C0202 |
| Resistance to Vibrations | No Change in Position of Contacts Greater than 100 µs: 25g 10 ... 500 Hz |
| Product Net Depth / Length | 44 mm |
| Resistance Between Contacts | 25 E45 |
| Package Level 1 Gross Weight | 0.174 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Package Level 1 Depth / Length | 47 mm |
| Declaration of Conformity - CCC | 2020980305001785 |
| Number of Auxiliary Contacts NC | 2 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Short-Circuit Protective Devices | gG Type Fuses 10 A |
| Data Sheet, Technical Information | 1SBC141157C0202 |
| Mounting by Screws (not supplied) | 2 or 4 x M5 screws |
| Terminal for Protective Conductor | M 3.5 (+,-) pozidriv 2 screw with cable clamp |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch |
| Rated Operational Current AC-15 (Ie) | (230 V AC) 3.1 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A |
| Maximum Electrical Switching Frequency | 3600 cycles per hour |
| Number and Type of Bottom Cable Glands | 1/2 NPT cable gland |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Resistance to Shock acc. to IEC 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s² |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Electrical Shock Protection acc. to IEC 536 | Class I |
| Positive Opening Operation of NC Contact(s) | Yes |
| Contact Element Form (acc. to IEC 60947-5-1) | Zb |
| Consistency (Measured over 1 Million Operations) | 0.05 mm |
| Connecting Terminals (delivered in open position) | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap action contacts |
