LS2ER/50-075

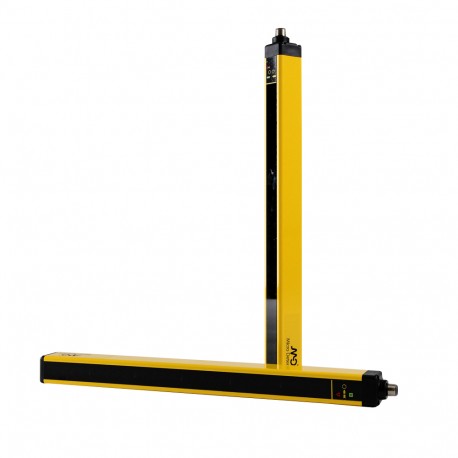

LS2ER/50-075 MICRO DETECTORS Safety sensor R 50mm h 760mm max. range 12m auto-manual restart EDM
$0.00USD
4282 in stock
Key Specifications
PL:c
CFF:80%
SIL:One
PFHd:3,19 E-08
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | c |
| CFF | 80% |
| SIL | One |
| PFHd | 3,19 E-08 |
| Type | Two |
| Dcavg | 92,80% |
| MTTFd | One hundred |
| SLICL | One |
| Moisture | 95% (non-condensing) |
| Dimensions | 28mm (front) x 30mm |
| Connections | M12-5-pin (transmitter)M12-8-pole (receiver) |
| Output type | 2 x PNP-NA (safety output OSSD) |
| Load current | ≤ 400mA |
| Nominal range | ≤ 12m |
| Certifications | CE, cULus, TÜV |
| Supply voltage | 19,2 ... 28,8 Vdc |
| Load capacitive | ≥ 0,82 µF |
| Number of beams | Twenty |
| Protected height | 760mm |
| Functions available | Manual reset/automatic, EDM |
| Shock and vibration | according to the standard IEC 61496-1 |
| Storage temperature | -25°C ÷ +70°C (without condensation) |
| Accessories included | ST 204 4S |
| Degree of protection | IP65, IP67 |
| Angle of opening cash | ±5° |
| Operating temperature | -10°C ÷ +55°C (with no condensation) |
| Power input - receiver | 2W (without load) |
| Principle of operation | Transmitter + receiver |
| Sensitivity adjustment | 7ms |
| Delay to the availability | 2s |
| Immunity to ambient light | according to the standard IEC 61496-2 |
| Resistive load equivalent | ≥ 60 Ω |
| Power consumption - emitter | 1W |
| Length cables (power/output) | ≤ 100m |
| Electromagnetic compatibility | According to directive 2014/30/EU |
| Length cable connections master slave | ≤ 50m |
Product Description
LS2ER/50-075 Safety sensor R=50mmh=760mmmax. range=12mauto-manual restart + EDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
