LS20M41B11-U01

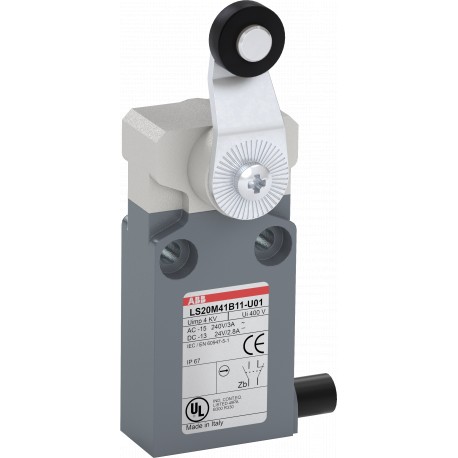

LS20M41B11-U01 1SBV015541R2601 ABB LS20M41B11-U01 Limit Switch
$0.00USD
3303 in stock
Key Specifications
:(DC-13) 3600 cycles per hour
ETIM 6:EC000030 - End switch
ETIM 7:EC000030 - End switch
ETIM 8:EC000030 - End switch
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (DC-13) 3600 cycles per hour | |
| ETIM 6 | EC000030 - End switch |
| ETIM 7 | EC000030 - End switch |
| ETIM 8 | EC000030 - End switch |
| UNSPSC | 39122213 |
| eClass | V11.0 : 27272601 |
| B10d Value | Operations 20 Millions |
| RoHS Status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Actuator Type | plastic roller lever (Ø14 mm) |
| Mounting Type | 30 mm |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Business |
| CQC Certificate | CQC2004010305127663 |
| cUL Certificate | 9AKK107991A7379 |
| Housing Material | Metal |
| RoHS Information | 1SBD251097E1000 |
| Product Net Width | 30 mm |
| REACH Declaration | 1SBD251097E1000 |
| Product Net Height | 92 mm |
| Product Net Weight | 0.224 kg |
| Package Level 1 EAN | 3471522637437 |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Customs Tariff Number | 85364900 |
| Mechanical Durability | 10 million |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 29 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 92 mm |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Instructions and Manuals | 1SBC141160C0201 |
| Object Classification Code | B |
| Product Net Depth / Length | 29 mm |
| Package Level 1 Gross Weight | 0.233 kg |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 400 V |
| Declaration of Conformity - CE | 1SBD250883U1000 |
| Package Level 1 Depth / Length | 30 mm |
| Declaration of Conformity - CCC | 2020980305001785 |
| Declaration of Conformity - UKCA | 1SBD250886U1000 |
| Data Sheet, Technical Information | 1SBC141160C0201 |
| IDEA Granular Category Code (IGCC) | 5202 >> Limit switch |
| Maximum Mounted Auxiliary Contacts | 1 NO, 1 NC |
| Rated Operational Current AC-15 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.8 A |
| Maximum Electrical Switching Frequency | (AC-15) 3600 cycles per hour |
| Number and Type of Bottom Cable Glands | Side (Prewired UL/IEC cable) |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 10 A |
| Action Type of the Contact Element (acc. to IEC 60947-5-1) | Snap Action Simultaneous |
