LS-EMSP-AL (90X60) BK

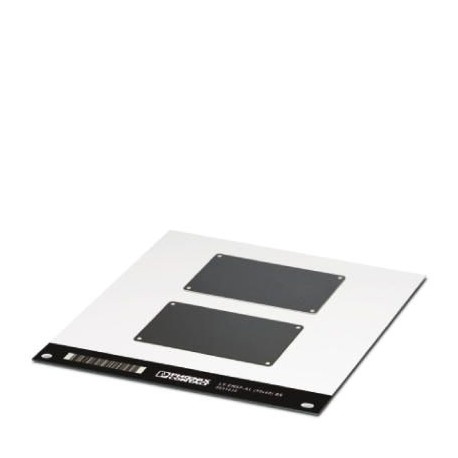

LS-EMSP-AL (90X60) BK 0831630 PHOENIX CONTACT Device marker
$0.00USD
3742 in stock
Key Specifications
GTIN:4046356925778
Orderkey:0831630
Catalog page:Page 291 (C-3-2017)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356925778 |
| Orderkey | 0831630 |
| Catalog page | Page 291 (C-3-2017) |
| Packing unit | 5 pc |
| Country of origin | CN (China) |
| Custom tariff number | 76169990 |
| Minimum order quantity | 5 pc |
| Note (Ambient conditions) | The information does not apply to the color fastness of the material. |
| Wipe resistance (General) | DIN EN 61010-1 (VDE 0411-1) |
| Color (Ambient conditions) | black |
| Cycles (Ambient conditions) | 2 |
| Device (Ambient conditions) | 0831831 TOPMARK LASER |
| Result (Ambient conditions) | Test passed |
| Material (Ambient conditions) | Aluminum |
| Procedure (Ambient conditions) | A |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 100 mm |
| Length (b) (Key Commercial Data) | 60 mm |
| Printability (Ambient conditions) | Direct laser marking |
| Climate level (Ambient conditions) | AHT 1.0 S |
| Test duration (Ambient conditions) | 96 h |
| Hole diameter (Key Commercial Data) | 3.20 mm |
| RoHS compliant (Ambient conditions) | Yes |
| Weight per Piece (excluding packing) | 65.900 g |
| Wipe resistance (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1) |
| Marking mounting type (Ambient conditions) | Screws, rivets |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 70 °C |
| Condensation test result (Ambient conditions) | Test passed |
| Salt spray testing result (Ambient conditions) | Test passed |
| Number of individual labels (Ambient conditions) | 2 |
| Wipe resistance test result (Ambient conditions) | Test passed |
| Salt spray test specification (Ambient conditions) | DIN EN 60068-2-11:2000-02 |
| Test specification weathering-resistance (Ambient conditions) | Following ISO 4892-2:2013-03 |
| Wipe resistance of test specification inscriptions (Ambient conditions) | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Alternating condensation climate with SO2 test specification (Ambient conditions) | DIN 50018:2013-05 |
| Test for substances that would hinder coating with paint or varnish (Ambient conditions) | VW PV 3.10.7:2005-02 |
Product Description
Device marker, Aluminum plate, black, unlabeled, labelable with: TOPMARKNEO, TOPMARK LASER, mounting class: screw, rivet, useful surface: 90x60mm, Number of individual indexes: 2
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
