LS-11S

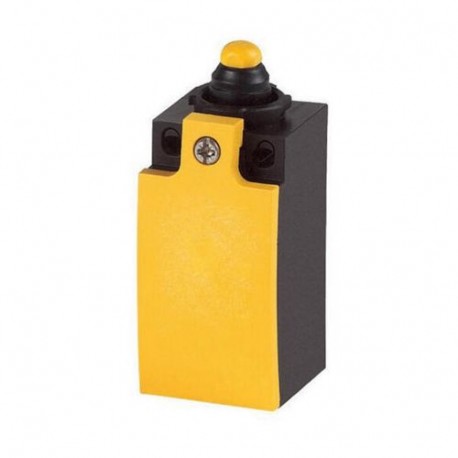

LS-11S 266105 Y7-266105 EATON ELECTRIC Position switch, 1N/O+1N/C, rounded plunger
$0.00USD
3064 in stock
Key Specifications
Feature Name:Feature Value
Width sensor (EF007094):31 mm
Forced opening (EF006694):Yes
Coating housing (EF001601):Other
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Width sensor (EF007094) | 31 mm |
| Forced opening (EF006694) | Yes |
| Coating housing (EF001601) | Other |
| Diameter sensor (EF007111) | 0 mm |
| Height of sensor (EF007283) | 61 mm |
| Housing material (EF001596) | Plastic |
| Length of sensor (EF007334) | 33.5 mm |
| Output electronic (EF006987) | No |
| Type of interface (EF006977) | None |
| Switching function (EF000189) | Quick-break switch |
| With status indication (EF001602) | No |
| Type of control element (EF006976) | Plunger |
| Construction type housing (EF004008) | Cuboid |
| Degree of protection (IP) (EF005474) | IP66/IP67 |
| Degree of protection (NEMA) (EF011959) | Other |
| Switching function latching (EF007447) | No |
| Type of electric connection (EF003961) | Cable entry metrical |
| Suitable for safety functions (EF001597) | Yes |
| Alignment of the control element (EF008793) | Roller cam straight |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Number of safety auxiliary contacts (EF006940) | 1 |
| Ambient temperature during operating (EF007515) | -25 °C |
| Number of contacts as change-over contact (EF008257) | 0 |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 6 A |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 3 A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 6 A |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 A |
| Rated operation current Ie at DC-13, 125 V (EF007085) | 0.8 A |
| Rated operation current Ie at DC-13, 230 V (EF001386) | 0.3 A |
| Type of interface for safety communication (EF003956) | None |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 1 |
Product Description
LS-11S
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
