LRS-350-24

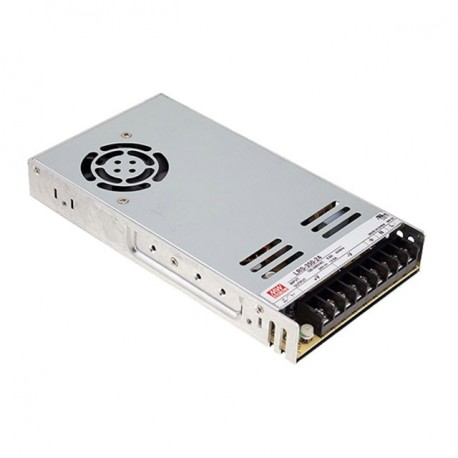

LRS-350-24 MEANWELL AC-DC Single output enclosed power supply, Input: 90-132 AC / 180-264 AC, Output: 24V / ..
$0.00USD
4308 in stock
Key Specifications
Fan:Yes
Name:LRS-350-24
State:Recommended Model
Stock:Yes
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | LRS-350-24 |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | LRS-350-24 |
| Approvals | BSMI, CE, EAC, UL |
| Power (W) | 350,40 |
| Subformato | Grid |
| Width (mm) | 115.00 |
| Height (mm) | 30.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Appliances, Industrial, Telecommunication |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 24,00 |
| Peak Power (W) | 350.4 |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 215.00 |
| Long Description | Switch mode power supply.Compact size.Format in box grid.Input range selectable by switch,90-132Vca/180-264vac. 47-63Hz.Output voltage24vdc. Adjustable by potentiometer (21,6-28,8 Vdc).Output intensityAbout 14.6 To. Current range of output 0-14,6 according To the demand load.Power:350,4 W.Efficiency typical:88%.Input class I with grounding.Consumption at no load <0,75 W.Operating altitude up to5000 metres.LED power indicator.Cooling by built-in fan.Resistant to vibrations5G.Protection against short circuit, over load, over voltage and temperature.Supports inputs of over-voltage of 300 Vac for 5 seconds.Working temperature: from-25ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height):215 x 115 x 30mm.3 years warranty.Manufacturer: MEAN WELL.Series LRS are power supplies input selectable by switch (switch). Format in box grill size compact (profile 1U). With high efficiency, reliability and long life.These sources are designed for applications in industrial, automotive, mechanical equipment and household electrical appliances. Can operate in altitudes above 5000 meters (see the curve for temperature drift) and vibration resistant to 5G.. Incorporates a fan with on / off control.This power supply does not meet the requirements of harmonic current as described in the regulations EN61000-3-2. Do not use this power supply in the following conditions:Equipment used within the European Union.Computers connected to the public network with a nominal voltage of 220vac.If the power supply is:installed on equipment with input power, average, or continuous, top to 75Wor belong to part of a lighting systemException:The power sources used in the following equipment do not have to comply with the standards EN61000-3-2.Professional equipment with a nominal input power greater than 1000W.Heating elements controlled with a nominal power less than or equal to 200W. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switch mode power supply.
