LPS-5

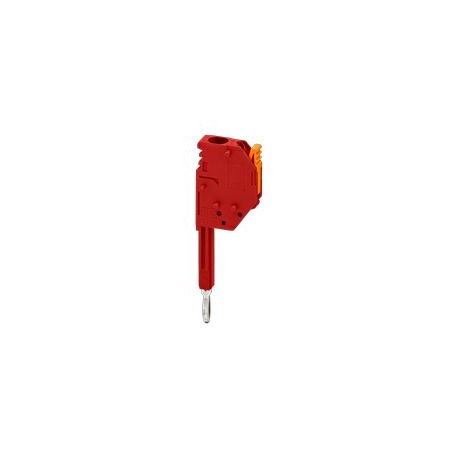

LPS-5 3270521 PHOENIX CONTACT Service connector, nominal voltage: 800 V, nominal current: 24 A, number of po..
$5.19USD
1958 in stock
Key Specifications
:8 mm ... 10 mm
Color:red
Depth:53.4 mm
Width:5.2 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 8 mm ... 10 mm | |
| Color | red |
| Depth | 53.4 mm |
| Width | 5.2 mm |
| Height | 18.5 mm |
| Material | PA |
| Product type | Test plug terminal block |
| Nominal current | 24 A |
| Nominal voltage | 800 V |
| Stripping length | 10 mm |
| Cross section AWG | 26 ... 12 (converted acc. to IEC) |
| Number of positions | 1 |
| Nominal cross section | 2.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 4 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C (max. operating temperature see derating curve) |
| Conductor cross section flexible | 0.14 mm² ... 4 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section, rigid [AWG] | 20 ... 14 (converted acc. to IEC) |
| Flammability rating according to UL 94 | V0 |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Static insulating material application in cold | -60 °C |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Product Description
Service connector, nom. voltage: 800 V, nominal current: 24 A, number of positions: 1, connection method: Push-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2- 4 mm2, color: red
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
