LPF-40D-48

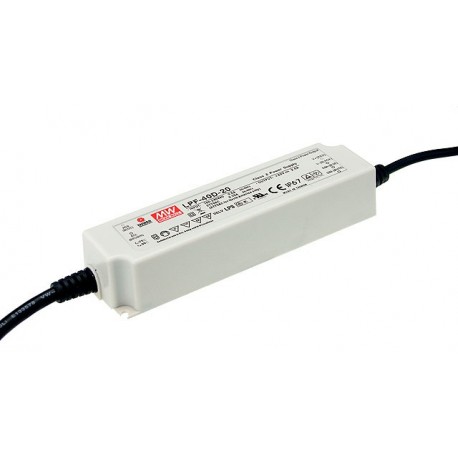

LPF-40D-48 MEANWELL AC-DC Single output LED driver Mix mode (CV+CC), Output 48VDC / 0.84A, cable output, Dim..
$0.00USD
4949 in stock
Key Specifications
Name:LPF-40D-48
State:Do not Use for New Designs
Format:Box
Series:LPF-40D
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LPF-40D-48 |
| State | Do not Use for New Designs |
| Format | Box |
| Series | LPF-40D |
| Dimming | 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approvals | CCC, CE, ENEC, PSE, UL |
| Power (W) | 40,30 |
| Subformato | IP67 |
| Width (mm) | 43.00 |
| Height (mm) | 32.00 |
| AC input Max | 305,00 |
| AC input Min | 90,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | 40.3 |
| Input connector | Cable |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 162.50 |
| Long Description | LED driver dimmable.Specially designed for powering LEDs directly in a steady stream.Format in box waterproof plasticIP67.Input range90-305Vca47-63Hz.Output in Constant Current840mA.Range of Output Voltage with Current mode Constant28,8 @ 48vdcaccording to demand load.Power:40,3 W.Efficiency typical:Eighty nine%.Regulationfrom 10% to 100% of the output intensity with a slider1-10V, a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can not turn off the output, we can only go down to 10%.Input class II without grounding.Factor corrector, power>0.95to 230vac at full load.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):162,5 x 43 x 32mm.5 years of warranty.Manufacturer: MEAN WELL.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source can operate in either Constant Current when we connect the LEDs directly to have a voltage within the Range of Output Voltage mode Constant Current and a working current equal to the output current.With plastic housing, designed for applications of LED lighting or LED displays. Suitable for dry environments, humid, and wet conditions. Complies with the requirements of security at the global level to iiluminación.This model is not recommended for dimming of LED strips, since the computer regulates reducing this crash the maximum output current. If the strip consumes less of the power of the equipment when we start to regulate it will do nothing, because the output current is giving is already decreasing. Nor do we lose 30% of power of the strip as in the low levels of regulation this can you blink, or have very low accuracy for the regulation in the low levels. If you need regular, LED strips, we recommend the series PWM.Can be adjusted by regulatory assets or liabilities1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).Con dimmers 1-10V we can only reach 10% of regulation without shutting down the output.Compatible with any dimmer 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Output connector | Cable |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | 800, 850 |
| Intensity of Minimum Output (mA) | 840,00 |
| Intensity of Output Maximum (mA) | 840,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable.
