LP4PF/0A-050

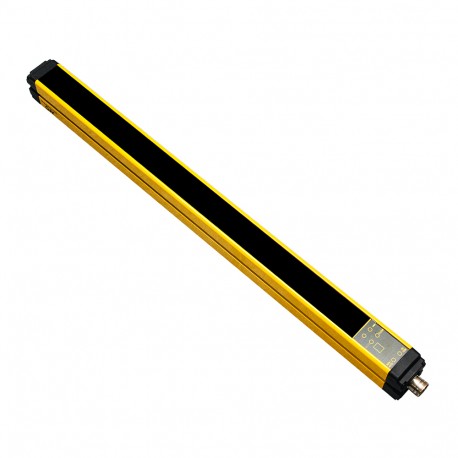

LP4PF/0A-050 MICRO DETECTORS Safety sensor R 2 beams h 500mm max. range 6m Auto-manual restart EDM, M12 5/8 ..
$0.00USD
4983 in stock
Key Specifications
PL:e
CFF:80%
SIL:3
PFHd:4,83E-09
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | e |
| CFF | 80% |
| SIL | 3 |
| PFHd | 4,83E-09 |
| Type | 4 |
| Dcavg | 98,14% |
| MTTFd | 100 |
| SILCL | 3 |
| humidity | 95% (no condensation) |
| Approvals | CE, cULus, TÜV |
| Dimensions | 50mm (front) x 60mm |
| Connections | M18-8 poles (active element) |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Load current | 500mA |
| Response time | 7ms |
| number of rays | 2 |
| Capacitive Load | ≥ 2 µF |
| EMC compatibility | According to 2014/30/EU Directive |
| Operating Voltage | 19,2 … 28,8 Vcc |
| controlled height | 500mm |
| Function Principle | Emitter + Receiver |
| Available functions | Manual/Automatic Restart, EDM |
| Storage temperature | -25°C…+70°C |
| Degree of protection | IP65 |
| Supplied Accessories | ST 202, ST 203 |
| Operating temperature | 0°C…+55°C |
| Shocks and vibrations | According to IEC 61496-1 |
| Effective Aperture Angle | ≤ ±2,5° |
| Nominal sensing distance | ≤ 6m |
| Equivalent Resistive Load | ≥ 48 Ω |
| Power Consumption - Receiver | 6W |
| Interference to external light | According to IEC 61496-2 |
| Time delay before availability | 15s |
| Cabel Length (Power Supply/Output) | 100m |
