LP4ER/0B-080

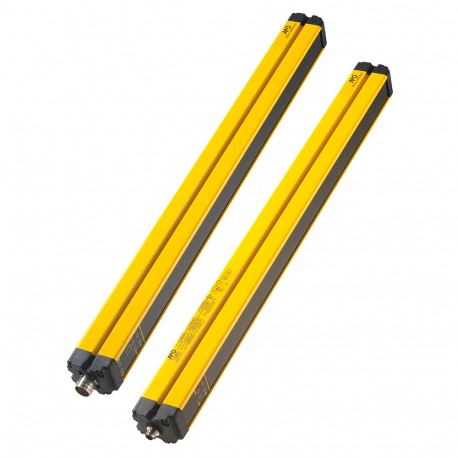

LP4ER/0B-080 MICRO DETECTORS Safety sensor R 3 beams h 800mm max. range 16m Auto-manual restart EDM
$0.00USD
4353 in stock
Key Specifications
PL:e
CFF:80%
SIL:3
PFHd:7,70E-09
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PL | e |
| CFF | 80% |
| SIL | 3 |
| PFHd | 7,70E-09 |
| Type | 4 |
| Dcavg | 97,99% |
| MTTFd | 100 |
| SILCL | 3 |
| humidity | 95% (no condensation) |
| Approvals | CE, cULus, TÜV |
| Dimensions | 50mm (front) x 60mm |
| Connections | M12-5 poles (emitter)M23-19 poles (receiver) |
| Output type | 2 x PNP-NO (OSSD safety output) |
| Load current | 500mA |
| Response time | 7ms |
| number of rays | 3 |
| Capacitive Load | ≥ 2 µF |
| EMC compatibility | According to 2014/30/EU Directive |
| Operating Voltage | 19,2 … 28,8 Vcc |
| controlled height | 800mm |
| Function Principle | Emitter + Receiver |
| Available functions | Manual/Automatic Restart, EDM, System Status |
| Storage temperature | -25°C…+70°C |
| Degree of protection | IP65 |
| Supplied Accessories | ST 202, ST 203 |
| Operating temperature | 0°C…+55°C |
| Shocks and vibrations | According to IEC 61496-1 |
| Effective Aperture Angle | ≤ ±2,5° |
| Nominal sensing distance | ≤ 16m |
| Equivalent Resistive Load | ≥ 48 Ω |
| Power Consumption - Emitter | 3W |
| Power Consumption - Receiver | 6W |
| Interference to external light | According to IEC 61496-2 |
| Time delay before availability | 15s |
| Cabel Length (Power Supply/Output) | 100m |
Product Description
LP4ER/0B-080 Safety sensor R=3 beams h=800mmmax. range=16mAuto-manual restart + EDM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
