LP 2,5/ 4

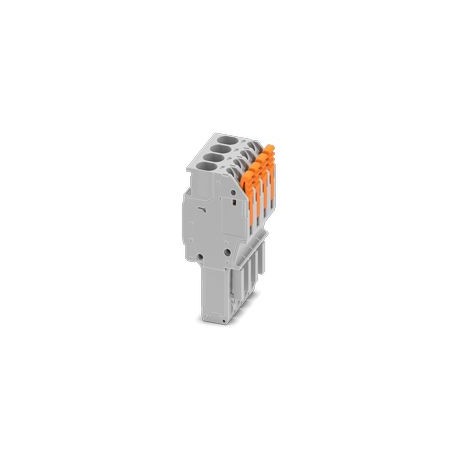

LP 2,5/ 4 1071715 PHOENIX CONTACT Connector, rated voltage: 800 V, rated current: 24 A, number of poles: 4, ..
$0.00USD
3573 in stock
Key Specifications
Color:gray
Depth:40.3 mm
Width:20.6 mm
Height:18.6 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Color | gray |
| Depth | 40.3 mm |
| Width | 20.6 mm |
| Height | 18.6 mm |
| Length | 18.6 mm |
| Product type | Terminal plug |
| Nominal current | 24 A |
| Nominal voltage | 800 V |
| Stripping length | 8 mm ... 10 mm |
| Cross section AWG | 26 ... 12 (converted acc. to IEC) |
| Degree of pollution | 3 |
| Insulating material | PA |
| Number of positions | 4 |
| Rated surge voltage | 8 kV |
| Maximum load current | 24 A (with 4 mm² conductor cross-section) |
| Overvoltage category | III |
| Nominal cross section | 2.5 mm² |
| Insulating material group | I |
| Conductor cross section rigid | 0.14 mm² ... 4 mm² |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Conductor cross section flexible | 0.14 mm² ... 4 mm² |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section, rigid [AWG] | 20 ... 12 (converted acc. to IEC) |
| Flammability rating according to UL 94 | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Static insulating material application in cold | -60 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Product Description
Plug, nom. voltage: 800 V, nominal current: 24 A, number of positions: 4, connection method: Push-in connection, Rated cross section: 2.5 mm2, cross section: 0.14 mm2- 4 mm2, color: gray
