LHP-200-5

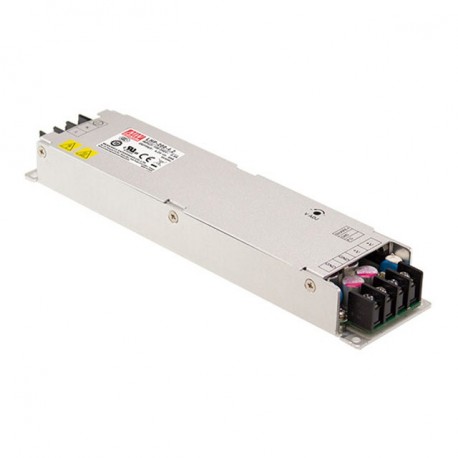

LHP-200-5 MEANWELL AC-DC Single output enclosed power supply with PFC, Output 5VDC / 40A, Low profile, Fanle..
$0.00USD
3277 in stock
Key Specifications
Fan:Yes
Name:LHP-200-5
State:New
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fan | Yes |
| Name | LHP-200-5 |
| State | New |
| Format | Box |
| Series | LHP-200 |
| Approvals | CE, UL |
| Power (W) | 200,00 |
| Subformato | Narrow |
| Width (mm) | 50.00 |
| Height (mm) | 26.00 |
| AC input Max | 264,00 |
| AC input Min | 90,00 |
| Applications | Lighting, Industrial |
| Manufacturer | MEAN WELL |
| Product type | Power supply AC/DC |
| Isolation (V) | 3.000,00 |
| Output voltage | 5,00 |
| Peak Power (W) | Two hundred |
| Input connector | Screw-Type |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 220.00 |
| Long Description | Switching power supply for LED panels.Specially designed to feed panels of LED signage.Format in metal box.Input range90-264vac47-63Hz.Output voltage5vdc. Adjustable by potentiometer (4,5-5vdc).Output intensity40A. Range of output current 0-40A according to demand load.Power:200W.Efficiency typical:91%.Factor corrector, power>0,95to 230vac at full load.Protection against short circuit, over load, over voltage and temperature.Input class I with grounding.Low leakage current<0.1 mA.Operating temperature range of caseTcfrom-40up+80ºC.Dimensions (Length x Width x Height):220 x 50 x 26mm.3 years of warranty.Manufacturer: MEAN WELL.The series LHP are sources with metal box especially designed for panels of LED signage with output voltages very low. Its design simplifies the installation process Has a high efficiency and energy saving.Support input voltages of 300Vca for 5 seconds and use components of the highest reliability. Support peak loads of up to 150%, during 100ms, which allows you to start heavy loads or withstand spikes without the need to oversize the power source. Have a power LED.Have multiple protections (short circuit, overload, over voltage and temperature).The series LHP these sources are robust and reliable, with high efficiency for all types of LED panels. |
| Output connector | Screw-Type |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Switching power supply for LED panels.
