LDLV/0P-1K

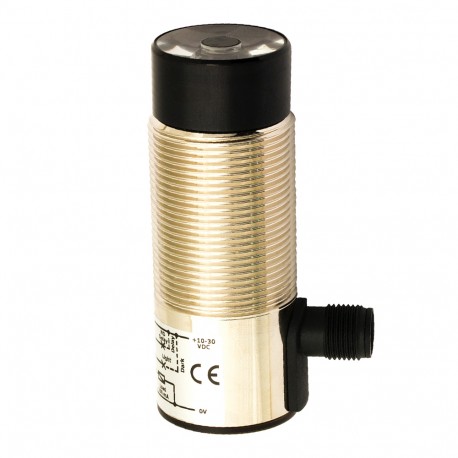

LDLV/0P-1K MICRO DETECTORS Photoelectric sensor Luminescent scanner M30 PNP plug M12 90°
$0.00USD
4321 in stock
Key Specifications
Weight:400g
Emission:UV
Approvals:CE
Dimensions:M30
Supplier Information
MICRO DETECTORS
Products: 33669
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight | 400g |
| Emission | UV |
| Approvals | CE |
| Dimensions | M30 |
| Connections | M12 plug |
| Output type | PNP |
| Load current | 100mA |
| Response time | 1,1 ms |
| LED indicators | yellow (output state) |
| Spot dimension | 3 x 1 mm @ 30mm |
| Leakage current | ≤ 10µA |
| Output Function | LO/DO |
| Housing Material | nickel plated brass |
| EMC compatibility | Conforming with EMC directive according with EN60947-5-2 |
| Operating Voltage | 10 … 30Vdc |
| Tightening torque | 50 Nm |
| Max ripple content | < 10% |
| Output voltage drop | ≤ 1,4V @ Iload=100mA |
| Switching frequency | 400 Hz |
| Thermal drift of Sr | ≤ 10% |
| Active Head Material | PMMA |
| Degree of protection | IP65 |
| Supplied Accessories | 2 x nuts+H2:I25 |
| Operating temperature | -5°C … +55°C (without freeze) |
| No-Load supply current | 20mA |
| Nominal sensing distance | 30mm |
| Short-circuit protection | Yes |
| Reverse Polarity Protection | Yes |
| Interference to external light | 3000 lux (incandescent lamp)10000 lux (sunlight) |
| Time delay before availability | < 200ms |
| Impulsive Overvoltage Protection | Yes |
Product Description
LDLV/0P-1K Photoelectric sensor Luminescent scanner M30 PNP conn. M12 at 90°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
