LDH-45B-500W

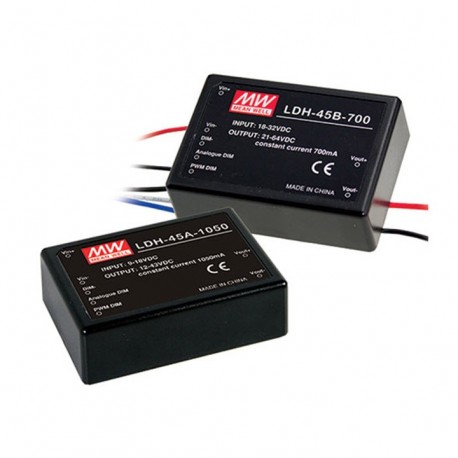

LDH-45B-500W MEANWELL DC-DC Step up LED driver Constant Current (CC), Input 18-32VDC, Output 0.5A / 12-86VDC..
$0.00USD
4392 in stock
Key Specifications
Name:LDH-45B-500W
State:Recommended Model
Stock:Yes
Format:Box
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDH-45B-500W |
| State | Recommended Model |
| Stock | Yes |
| Format | Box |
| Series | LDH-45-W |
| Dimming | Analog, Signal PWM 10V |
| Approvals | EC |
| Power (W) | 43,00 |
| Subformato | Encapsulated |
| Width (mm) | 53.00 |
| Height (mm) | 22.70 |
| Applications | Lighting, Solar |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Peak Power (W) | Forty three |
| Range DC Input | 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32 |
| Input connector | Cable |
| Long/Background | 75.00 |
| Long Description | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection cables.Input rangeEighteen-32Vcc.Output in constant current500mA.Range of output voltage with current mode constantTwenty oneto 86Vccaccording to demand load.The output voltage must be at least 3V higher than the input voltage.Power:43W.Efficiency typical:94%.Regulation0% to 100% of the output intensity with a PWM signal or analog 0 to 1.3 V.Input class II without grounding.Consumption at no load in 7th in off mode.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):75 x 53 x 22,7 mm3 years of warranty.Manufacturer: MEAN WELL.The series LDH-45-W are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal or an analog signal.This series are lifts voltage (design boost or stepup) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V higher than the supply voltage. |
| Output connector | Cable |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| Output current mA | Five hundred |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver input and continuous output in a steady stream.
