LDH-45B-500

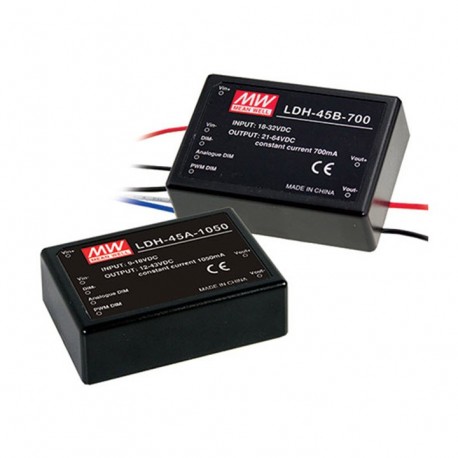

LDH-45B-500 MEANWELL DC-DC Step up LED driver Constant Current (CC), Input 18-32VDC, Output 0.5A / 12-86VDC,..
$0.00USD
4461 in stock
Key Specifications
Name:LDH-45B-500
State:Recommended Model
Format:Box
Series:LDH-45
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDH-45B-500 |
| State | Recommended Model |
| Format | Box |
| Series | LDH-45 |
| Dimming | Analog, Signal PWM 10V |
| Approvals | EC |
| Power (W) | 43,00 |
| Subformato | Encapsulated |
| Width (mm) | 53.00 |
| Height (mm) | 22.70 |
| Applications | Lighting, Solar |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Peak Power (W) | Forty three |
| Range DC Input | 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32 |
| Input connector | Pin |
| Long/Background | 75.00 |
| Long Description | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection pins.Input rangeEighteen-32Vcc.Output in constant current500mA.Range of output voltage with current mode constantTwenty oneto 86Vccaccording to demand load.The output voltage must be at least 3V higher than the input voltage.Power:43W.Efficiency typical:94%.Regulation0% to 100% of the output intensity with a PWM signal or analog 0 to 1.3 V.Input class II without grounding.Consumption at no load in 7th in off mode.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):75 x 53 x 22,7 mm3 years of warranty.Manufacturer: MEAN WELL.The series LDH-45 are current regulators designed to feed the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal or an analog signal. |
| Output connector | Pin |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| Output current mA | Five hundred |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver input and continuous output in a steady stream.
