LDH-45B-1050DA

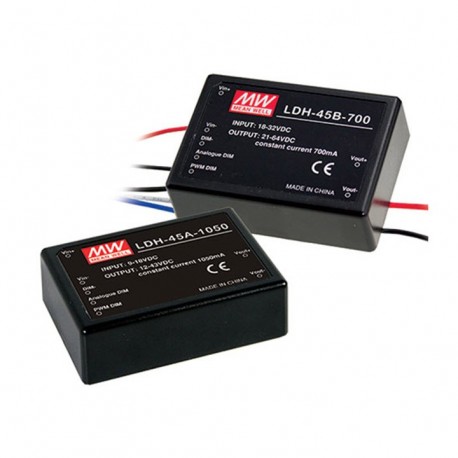

LDH-45B-1050DA MEANWELL DC-DC Step up LED driver Constant Current (CC), Input 18-32VDC, Output 1.05A / 12-43..
$0.00USD
3534 in stock
Key Specifications
Name:LDH-45B-1050DA
State:Recommended Model
Format:Box
Series:LDH-45DA
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDH-45B-1050DA |
| State | Recommended Model |
| Format | Box |
| Series | LDH-45DA |
| Dimming | DALI |
| Approvals | EC |
| Power (W) | 45,10 |
| Subformato | Encapsulated |
| Width (mm) | 53.00 |
| Height (mm) | 22.70 |
| Applications | Lighting, Solar |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Peak Power (W) | 45.1 |
| Range DC Input | 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32 |
| Input connector | Pin |
| Long/Background | 75.00 |
| Long Description | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection pins.Input rangeEighteen-32Vcc.Output in constant current1050mA.Range of output voltage with current mode constantThirty sixto 43Vccaccording to demand load.The output voltage should be at least 12V higher than the input voltage.Power:45,1 W.Efficiency typical:95%.Regulation DALI0% to 100% of the output intensity. Certificate to DALI.Input class II without grounding.Consumption at no load in 7th in off mode.Operating temperature range of caseTcfrom-40ºCup+70ºC.Dimensions (Length x Width x Height):75 x 53 x 22,7 mm3 years of warranty.Manufacturer: MEAN WELL.The series LDH-45DA are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI.This series are lifts voltage (design boost or step-up) that raise the input voltage to an output voltage higher while keeping the output current constant. It is very important to consider that the supply voltage of the leds should be at least 12V above the voltage of power supply. |
| Output connector | Pin |
| Warranty (Years) | 3,00 |
| Country of Origin | China |
| Output current mA | One thousand fifty |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver input and continuous output in a steady stream.
