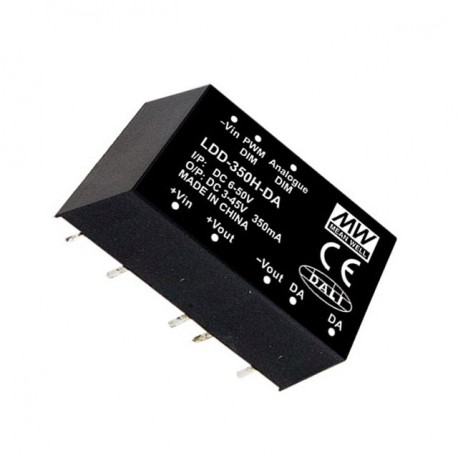

LDD-350H-DA
LDD-350H-DA MEANWELL DC-DC Step down LED driver Constant Current (CC), Input 6-50VDC, Output 0.35A / 3-45VDC..
$0.00USD
4204 in stock
Key Specifications
Name:LDD-350H-DA
State:New
Format:Box
Series:LDD-H-DA
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDD-350H-DA |
| State | New |
| Format | Box |
| Series | LDD-H-DA |
| Dimming | Analog, DALI, PWM Signal 10V |
| Approvals | EC |
| Power (W) | 15,70 |
| Subformato | Encapsulated |
| Width (mm) | 23.50 |
| Height (mm) | 10.10 |
| Applications | Lighting, Solar |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Peak Power (W) | 15.7 |
| Range DC Input | 6, 6,5, 7, 8, 8,1, 8,3, 8,4, 9, 9,2, 9,9, 10, 10,5, 10,8, 12, 13,2, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 20,4, 21, 21,6, 22,5, 24, 25,2, 26,4, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36, 36,4, 38,4, 40, 43, 46,8, 50 |
| Input connector | Pin |
| Long/Background | 40.60 |
| Long Description | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection pins.IP65.Input rangeSix-50Vcc.Output in constant current350mA.Range of output voltage with current mode constantThreeto 45Vccaccording to demand load.The output voltage must be at least 3V lower than the input voltage. Regulator Buck (Vout < Vin).Power:15,7 W.Efficiency typical:95%.Regulation DALI0% to 100% of the output intensity. Certificate to DALI.Regulation0% to 100% of the output intensity with a PWM signal or analog from 0.1 to 5V.Consumption without load 1mA in power-off mode.Operating temperature range of caseTcfrom-40ºCup+85ºC.Dimensions (Length x Width x Height):Age, 40.6 x 23.5 x 10,1 mm.3 years of warranty.Manufacturer: MEAN WELL.The series LDD-H-DA are current regulators designed to feed the leds from a battery or dc voltage. These teams have regulation DALI, compatible with any system DALI. Can also be controlled via a PWM signal or analog signal.This series are voltage reducers (designed for buck or step-down) that reduce the input voltage to an output voltage lower while keeping the output current constant. It is very important to consider that the supply voltage of the leds must be at least 3V lower than the supply voltage. |
| Output connector | Pin |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
| Output current mA | Three hundred fifty |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver input and continuous output in a steady stream.
