LDC-35B

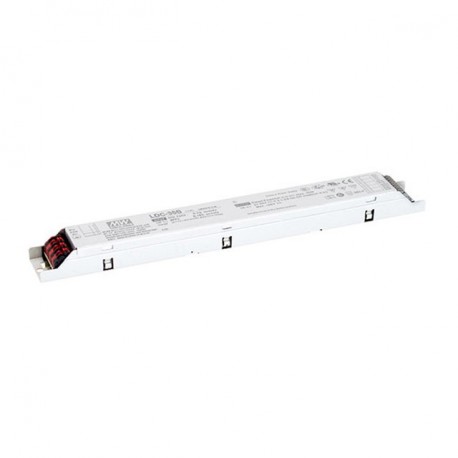

LDC-35B MEANWELL AC-DC Linear LED driver Constant Power Mode, Output 56VDC / 1A, Metal housing design, 3-in-..
$0.00USD
3587 in stock
Key Specifications
Name:LDC-35B
State:New
Format:Box
Series:LDC-35B
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDC-35B |
| State | New |
| Format | Box |
| Series | LDC-35B |
| Dimming | 0-10V, 1-10V, Resistance 0-100K, PWM Signal 10V |
| Approvals | CCC, CE, EAC, ENEC, MM, UL |
| Power (W) | 35,00 |
| Subformato | Ballast |
| Width (mm) | 30.00 |
| Height (mm) | 21.00 |
| AC input Max | 295,00 |
| AC input Min | 180,00 |
| Applications | Lighting |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Isolation (V) | 3.750,00 |
| Peak Power (W) | Thirty five |
| Input connector | Quick Connector |
| Input frequency | 50 Hz, 60 Hz |
| Long/Background | 280.00 |
| Long Description | LED driver dimmable with constant power.Specially designed for powering LEDs directly in a steady stream.Format metal box type ballastIP20.Input range180-295Vca47-63Hz.Range of output constant current300-1000mA.Adjustable by resistor (300-1000mA).Maximum output power rating of between625-1000mA.Range of output voltage with current mode constant27 to 56Vccaccording to demand load and according to adjustment of the output current.Power:35W.Efficiency typical:88%.Regulation0% to 100% of the output intensity with a slider0-10V / 1-10V,a PWM signal of 10V with a frequency of 100Hz to 3KHz or resistance of 0 to 100K Ohms. With the regulation we can turn off the output, but we need a regulator 0-10V. Regulators 1-10V not arrive to give 0V do not shut down the output.Input class I with grounding.Factor corrector, power>0,95to 230vac at load higher than 50%.Low ripple current <3%, no flash.Harmonic distortionTHD <10%with loads higher than 50%.Input of temperature sensor NTC.Consumption without load <0.5 W.Operating temperature range of caseTcfrom-25ºCup+80ºC.Dimensions (Length x Width x Height):280 x 30 x 21mm.5 years of warranty.Manufacturer: MEAN WELL.The LDC-series-35 are LED drivers with constant power. Give an output constant current which can be adjusted by an external resistor connected between the terminal IADJ. This allows us to adjust the output current between 300 and 1000mA. The range of output voltage is adjusted to get maximum power between 625 and 1000mA. In this way we can get the maximum power output while to adjust to different current values. The sources of constant power offer a wide operating range (voltage + current), allowing to use one model for different applications with different requirements of voltage and current. Input of temperature sensor using an NTC, which allows us to reduce the output current and protect the LEDs in case of excessive warming in the same (sensor not included).Have a minimum ripple current thus providing light of the highest quality without flicker. Also have a small harmonic distortion in order to avoid creating problems in the electrical network, and a high correction factor of power.This source is designed to work directly with leds (plates LED or COBs), not with LED strips. Must be equipment that is fed in a steady stream.This source works on a constant current when we connect the LEDs directly to have a voltage within the range of output voltage mode constant current and a working current equal to the output current. The output current can be adjusted via an external resistor.The LDC-series-35 are LED drivers, class I with grounding and output power limited class 2.With metal housing type ballast IP20, LDC-series-35 has a high efficiency designed for applications of panels of LED lighting, indoor lighting and due to its elongated shape in the form of ballast, are ideal for LED lighting online.They have all kinds of protections against over loads, short circuit, over output voltage, temperature of the driver and the own Led.Are certified CE, ENEC, UL, MM, CCC for use in a multitude of applications and countries.Can be adjusted by regulatory assets or liabilities0-10Vor1-10V, signal 10V PWM of 100Hz to 3KHz or by resistance of 0 to 100KOhmios. Does not work with dimmers Triac dimmer cutting phase.(Not to be confused with regulators TRIACs, cutting phase. This driver cannot be regular with a Triac).With potentiometers assets that you can give 0V to shut down the output without the need of a switch. Dimmers 1-10V we can only reach 10% of regulation without shutting down the output. If you want to regulate the LED strips we recommend the series PWM.Compatible with any regulator 0-10V or 1-10V-market both assets and liabilities. Some compatible models tested are:MEAN WELL DAP-04S01 (compatible with any push button normally open).SIMON: 75317BJC: 5TC8 425LEGRAND: 0784 04ABB- "NIESSEN": N2260.9SIEMENS: 5TC8424EFAPEL: Model 21210LED BOX: Model LD1160188OSRAM: Model DIM MCUJUNG: Model 240-10We can put about 20 sources for each regulator. The maximum distance is 100 meters between the regulator and the driver. |
| Output connector | Quick Connector |
| Type of Entry CA | Single-phase |
| Warranty (Years) | 5,00 |
| Country of Origin | China |
| Output current mA | 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000 |
| Intensity of Minimum Output (mA) | 300,00 |
| Intensity of Output Maximum (mA) | 1.000,00 |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver dimmable with constant power.
