In Stock Hot Product
LDB-350LW

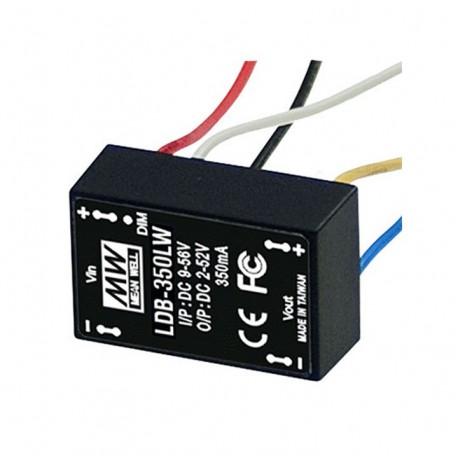

LDB-350LW MEANWELL DC-DC Buck-Boost LED Driver (CC), Input 9-36VDC, Output 40VDC / 0.35A, Built-in PWM and R..
$0.00USD
3350 in stock
Key Specifications
Name:LDB-350LW
State:Recommended Model
Format:Box
Series:LDB-LW
Supplier Information
MEANWELL
Products: 6448
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Name | LDB-350LW |
| State | Recommended Model |
| Format | Box |
| Series | LDB-LW |
| Dimming | Signal PWM 10V |
| Approvals | EC |
| Power (W) | 14,00 |
| Subformato | Encapsulated |
| Width (mm) | 20.30 |
| Height (mm) | 12.20 |
| Applications | Lighting, Solar |
| Manufacturer | MEAN WELL |
| Product type | LED Driver |
| Peak Power (W) | Fourteen |
| Range DC Input | 9, 9,2, 10, 10,5, 10,8, 12, 13,5, 14, 14,4, 15, 16,2, 16,5, 16,8, 18, 19, 22,5, 24, 25,2, 28, 28,8, 30, 31,2, 32, 32,4, 33,6, 35, 36 |
| Input connector | Cable |
| Long/Background | 31.80 |
| Long Description | LED driver input and continuous output in a steady stream.Specially designed for applications of solar street lights powered from battery.Format in box with connection cables.IP67.Input rangeNine-36Vcc.Output in constant current350mA.Range of output voltage with current mode constantTwoto 40Vccaccording to demand load.Regulator Buck-Boost (Vout >< Vin).Power:14W.Efficiency typical:89% (12vdc)and90% (24vdc).Regulation0% to 100% of the output intensity with a PWM signal.Consumption without load 1mA in power-off mode.Operating temperature range of caseTcfrom-40ºCup+71ºC.Dimensions (Length x Width x Height):31,8 x 20,3 x 12.2 mm.3 years of warranty.Manufacturer: MEAN WELL.The series LDB-L with current regulators intended to power the leds from a battery or dc voltage. These teams can be dimmed with a PWM signal.This series are reducing and lifts voltage (Buck-Boost, Vout >< Vin), which will reduce or increase the input voltage to an output voltage lower or higher by keeping the output current constant. The output must not be connected to the input of the same unit or output from other sources. |
| Output connector | Cable |
| Warranty (Years) | 3,00 |
| Country of Origin | Taiwan |
| Output current mA | Three hundred fifty |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
LED driver input and continuous output in a steady stream.
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
