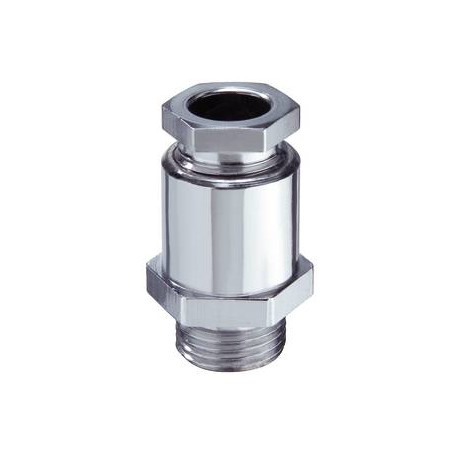

KVMS 80-W61*/cr
KVMS 80-W61*/cr 10016452 WISKA Hexagonal cable glands, metal DIN 89280 "W" IP54 range from 59 to 62mm, threa..
$0.00USD
4953 in stock
Key Specifications
Lead (Features):2
Type (Features):KVMS 80-W61/Cr
Advice (Features):* Similar to DIN 89280
Surface (Features):Chromium-plated
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 2 |
| Type (Features) | KVMS 80-W61/Cr |
| Advice (Features) | * Similar to DIN 89280 |
| Surface (Features) | Chromium-plated |
| Thread type (Features) | M |
| Packing unit (Features) | 1 |
| Key width SW1 (Features) | 85 mm |
| Key width SW2 (Features) | 90 mm |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 79 mm |
| Protection class (Features) | IP54 |
| Collar diameter E1 (Features) | 92 mm |
| Collar diameter E2 (Features) | 100 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass chromium-plated |
| Ø cable diameter max (Features) | 62 mm |
| Ø cable diameter min (Features) | 59 mm |
| Ø Connection thread D (Features) | 80 |
| Material sealing gasket (Features) | EPDM |
| Order no. chrome-plated (Features) | 10016452 |
| Install. torques cap nut (Features) | 30 N m |
| Install. torques fitting (Features) | 30 N m |
| Length screw-in thread L (Features) | 18 mm |
Product Description
Cable gland, brass chromed-plated, similar to DIN 89280, M80
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
