In Stock Hot Product
KVM 72-Z48/lb

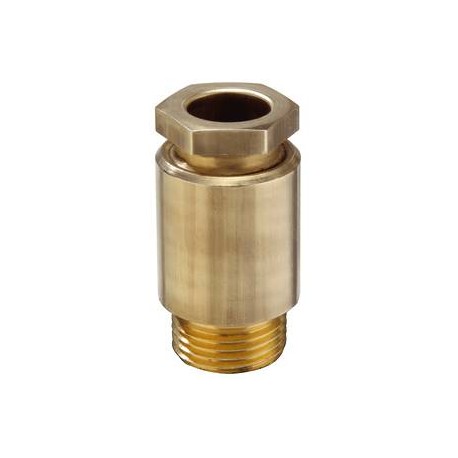

KVM 72-Z48/lb 10010856 WISKA Cylindrical, metallic DIN 89280 "Z" IP54 cable glands for EMC, range from 44 to..
$0.00USD
3623 in stock
Key Specifications
Lead (Features):2
Type (Features):KVM 72-Z48
Advice (Features):* Similar to DIN 89280
Surface (Features):Bright
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 2 |
| Type (Features) | KVM 72-Z48 |
| Advice (Features) | * Similar to DIN 89280 |
| Surface (Features) | Bright |
| Thread type (Features) | M |
| Key width SW (Features) | 70 mm |
| Packing unit (Features) | 1 |
| Impact category (Features) | 6 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 73 mm |
| Order no. bright (Features) | 10010856 |
| Protection class (Features) | IP54 |
| Collar diameter (E) (Features) | 75 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass |
| Ø cable diameter max (Features) | 48,5 mm |
| Ø cable diameter min (Features) | 44 mm |
| Ø Connection thread D (Features) | 72 |
| Material sealing gasket (Features) | EPDM |
| Install. torques cap nut (Features) | 15 N m |
| Install. torques fitting (Features) | 20 N m |
| Length screw-in thread L (Features) | 16 mm |
| Material earthing insert (Features) | Brass chromium-plated |
Product Description
Cable gland, brass, DIN 89280, M72
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
