KVM 18-W10/cr

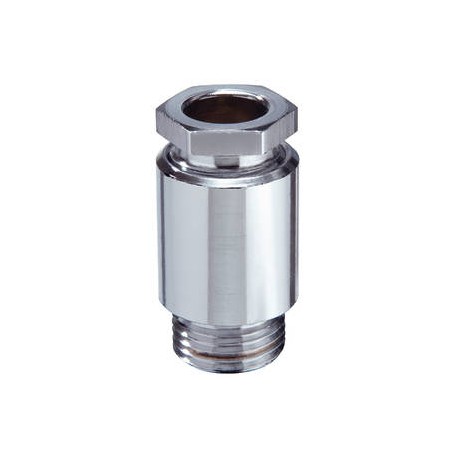

KVM 18-W10/cr 10014564 WISKA Cylindrical glands, metal DIN 89280 "W" IP54 range from 8 to 10.5mm, thread M18
$0.00USD
4980 in stock
Key Specifications
Lead (Features):1,5
Type (Features):KVM 18-W10/Cr
Advice (Features):* Similar to DIN 89280
Surface (Features):Chromium-plated
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Lead (Features) | 1,5 |
| Type (Features) | KVM 18-W10/Cr |
| Advice (Features) | * Similar to DIN 89280 |
| Surface (Features) | Chromium-plated |
| Thread type (Features) | M |
| Key width SW (Features) | 19 mm |
| Packing unit (Features) | 1 |
| Temp. range max (Features) | 100 °C |
| Temp. range min (Features) | -40 °C |
| Total length TL (Features) | 43 mm |
| Protection class (Features) | IP54 |
| Collar diameter (E) (Features) | 22 mm |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Brass chromium-plated |
| Ø cable diameter max (Features) | 10,5 mm |
| Ø cable diameter min (Features) | 8 mm |
| Ø Connection thread D (Features) | 18 |
| Material sealing gasket (Features) | EPDM |
| Order no. chrome-plated (Features) | 10014564 |
| Install. torques cap nut (Features) | 10 N m |
| Install. torques fitting (Features) | 10 N m |
| Length screw-in thread L (Features) | 10 mm |
Product Description
Cable gland, brass chromed-plated, DIN 89280, M18
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
