In Stock Hot Product
KVG 16

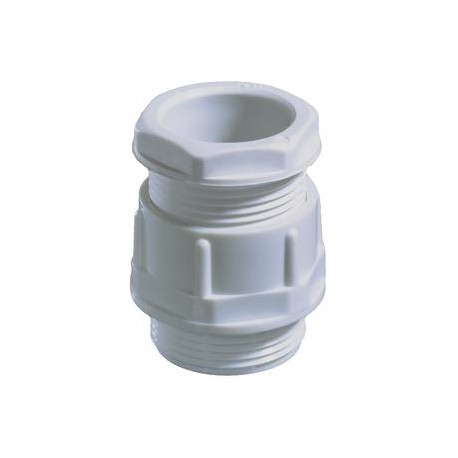

KVG 16 10060145 WISKA Light grey cable glands RAL 7035, PA IP54 range from 8 to 14mm, thread PG 16
$0.00USD
3877 in stock
Key Specifications
Type (Features):KVG 16
Thread type (Features):PG
Packing unit (Features):50
Key width SW1 (Features):23 mm
Supplier Information
WISKA
Products: 2869
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type (Features) | KVG 16 |
| Thread type (Features) | PG |
| Packing unit (Features) | 50 |
| Key width SW1 (Features) | 23 mm |
| Key width SW2 (Features) | 27 mm |
| Product Color (Features) | RAL 7035 |
| Temp. range max (Features) | 80 °C |
| Temp. range min (Features) | -20 °C |
| Total length TL (Features) | 38 mm |
| Protection class (Features) | IP54 |
| Collar diameter E1 (Features) | 26 mm |
| Collar diameter E2 (Features) | 30 mm |
| Order no. RAL 7035 (Features) | 10060145 |
| ETIM-Classification (Features) | EC000441 |
| Material cable gland (Features) | Polyamide, fibre reinforced |
| Ø cable diameter max (Features) | 14 mm |
| Ø cable diameter min (Features) | 11 mm |
| Ø Connection thread D (Features) | 16 |
| Length screw-in thread L (Features) | 10 mm |
Product Description
Cone cable gland, polyamide, Pg 16,RAL 7035
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
