In Stock Hot Product
KV-M-M50-GD-(2X6)
KV-M-M50-GD-(2X6) 1636525 PHOENIX CONTACT Cable gland
$50.94USD
243 in stock
Key Specifications
GTIN:4046356028257
Orderkey:1636525
Catalog page:Page 615 (C-4-2013)
Packing unit:5 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356028257 |
| Orderkey | 1636525 |
| Catalog page | Page 615 (C-4-2013) |
| Packing unit | 5 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 74153300 |
| (Key Commercial Data) | 5.5 mm ... 6 mm (Cable 2) |
| Halogen-free (General) | no |
| Minimum order quantity | 5 pc |
| Color (Ambient conditions) | silver |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Length (Key Commercial Data) | 39 mm |
| Shielded (Ambient conditions) | no |
| Seal material (Ambient conditions) | TPE |
| O-ring material (Ambient conditions) | NBR |
| Weight per Piece (excluding packing) | 213.500 g |
| Sealing material (Ambient conditions) | TPE |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Degree of protection (IP) (Dimensions) | IP65 |
| No. of conductors (Ambient conditions) | 2 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Cable gland material (Ambient conditions) | Nickel-plated brass |
| Wrench size, support (Key Commercial Data) | 54 mm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 125 °C |
| Wrench size, union nut (Key Commercial Data) | 50 mm |
| External cable diameter (Key Commercial Data) | 5.5 mm ... 6 mm (Cable 1) |
| Material, pressure screw (Ambient conditions) | Nickel-plated brass |
| Hexagon angular dimension (Key Commercial Data) | 58 mm |
| Thread type connection side (Ambient conditions) | M50 |
| Thread type on connection side (Ambient conditions) | M50 |
| Length of the connecting thread (Key Commercial Data) | 10 mm |
Product Description

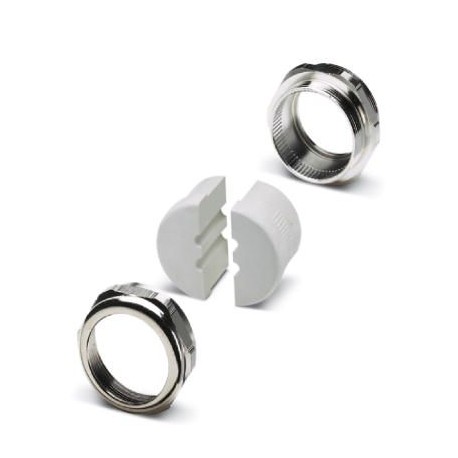

HEAVYCON M50 metal cable gland, feed-through for data connector, with sectional joint, hole diameter 2 x 6 mm; Inner diameter 37 mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
