KSK-N

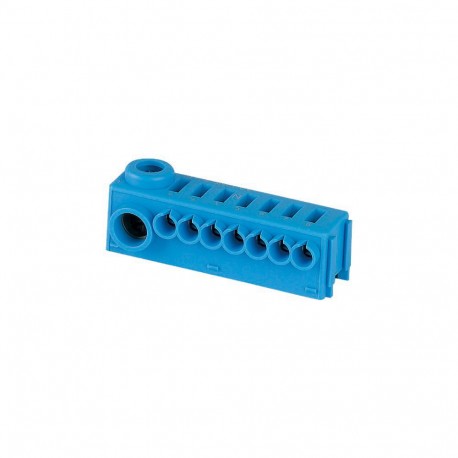

KSK-N 178903 Y7-178903 EATON ELECTRIC Combination plug-in terminal KSK individual blue for neutral conductor
$0.00USD
3609 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):19.5 mm
Width (EF000008):55 mm
Colour (EF000007):Blue
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 19.5 mm |
| Width (EF000008) | 55 mm |
| Colour (EF000007) | Blue |
| Height (EF000040) | 17 mm |
| Transparent (EF006243) | No |
| Halogen free (EF000025) | Yes |
| Rated voltage (EF000228) | 400 V |
| Mounting method (EF000003) | Direct mounting |
| Number of poles (EF001391) | 1 |
| Rated current In (EF008250) | 63 A |
| Operating temperature (EF002393) | 35 °C |
| Closing plate required (EF002525) | No |
| Material insulation body (EF007543) | Thermoplastic |
| Drill hole distance centrically (EF002677) | 1 mm |
| Explosion-tested version 'Ex e' (EF008498) | No |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Plug-in connection |
| Number of clamp positions per pole (EF002519) | 8 |
| Connectable conductor cross section solid-core (EF007337) | 2.5 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 2.5 mm² |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 2.5 mm² |
Product Description
KSK-N
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
